Same model may have multiple batches, images only for reference.

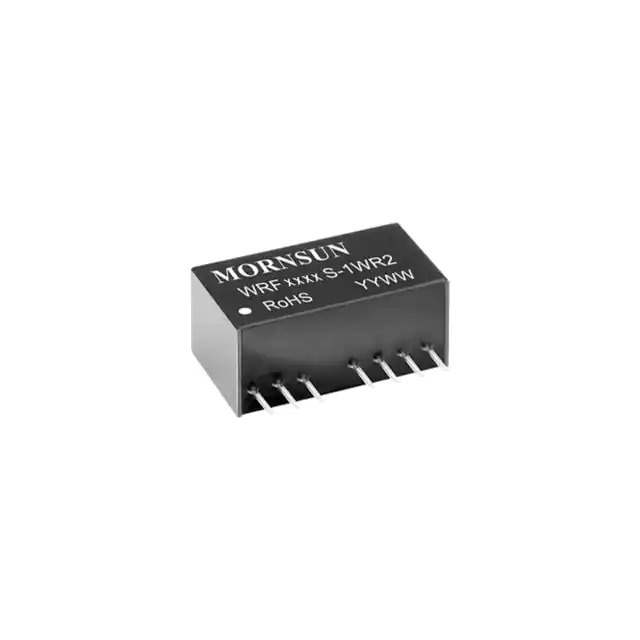

WRF2412S-1WR2 Real Image
Same model may have multiple batches, images only for reference.

WRF2412S-1WR2

Part No WRF2412S-1WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRF_S-1WR2 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Approval Agency CE, EN, UKCA
Standard Number 62368-1
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1206346-WRF2412S-1WR2
Ultra Librarian 3D Model Ultra Librarian WRF2412S-1WR2 CAD Model

Description

The WRF2412S-1WR2 is a power supply module designed for board mounting in DC-DC converters.

  • Series: WRF_S-1WR2
  • Power Output: 1W
  • Functionality: Remote On/Off
  • Package: Tube
  • Dimensions: 0.87" L x 0.37" W x 0.47" H
  • Application: ITE (Commercial)
  • Standard Package: 22 pcs
  • Number of Outputs: 1
  • Maximum Output Current: 83mA
  • Input Voltage: 18V to 36V
  • Output Voltage: 12V
  • Efficiency: 78%
  • Voltage Isolation: 3kV
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
  • Approvals: CE, EN, UKCA
