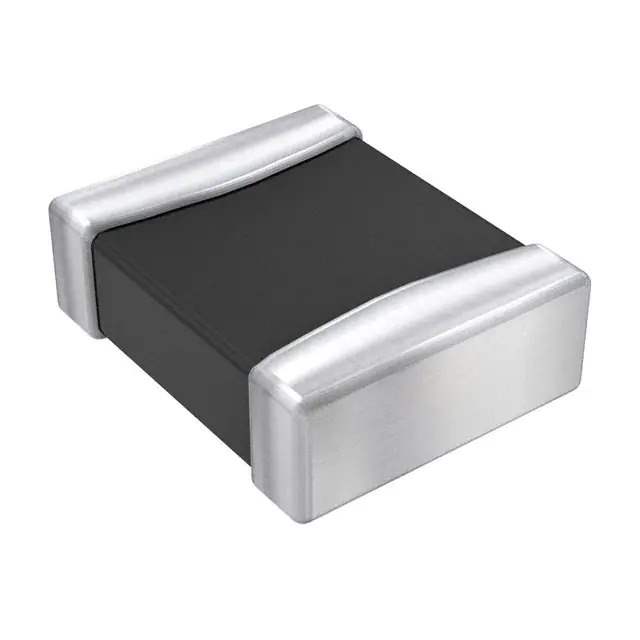

Same model may have multiple batches, images only for reference.

1276AS-H-1R0M=P2

Name: 1276AS-H-1R0M=P2
Brand: Murata Electronics North America
SKU: 853900
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1276AS-H-1R0M=P2
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 1UH 2.6A 62 MOHM SMD
Datasheet	1276AS-H-1R0M=P2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics North America
Series	DFE322510C
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	2.6 A
Current - Saturation (Isat)	3.1A
Shielding	Shielded
DC Resistance (DCR)	62mOhm Max
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	1276AS
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	853900-1276AS-H-1R0M=P2
Ultra Librarian 3D Model	Ultra Librarian 1276AS-H-1R0M=P2 CAD Model

Alternative Products

Description

The DFE322510C is a fixed inductor from the DFE322510C series by Murata Electronics.

Series: DFE322510C
Core Type: Drum Core, Wirewound
Shielding: Shielded
Inductance: 1 μH
Tolerance: ±20%
Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Seated Height: 0.039" (1.00mm)
Mounting Type: Surface Mount
Packaging: Tape & Reel
Package Quantity: 3,000
DC Resistance (DCR): 62mOhm max
Current Rating: 2.6A
Operating Temperature: -40°C to 85°C
Product Status: Active
