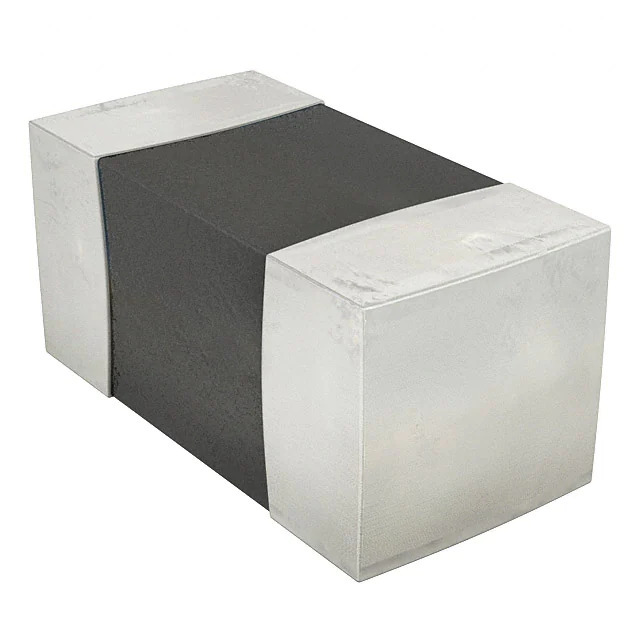

Same model may have multiple batches, images only for reference.

BLM15HD102SH1D

Name: BLM15HD102SH1D
Brand: Murata Electronics North America
SKU: 1369000
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BLM15HD102SH1D
Manufacturer	Murata Electronics North America
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 1K OHM 0402 1LN
Datasheet	BLM15HD102SH1D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Murata Electronics
Series	EMIFIL®, BLM15
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	1 kOhms @ 100 MHz
Current Rating (Max)	250mA
DC Resistance (DCR) (Max)	1.25Ohm
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0402 (1005 Metric)
Mounting Type	Surface Mount
Height (Max)	0.022" (0.55mm)
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Base Product Number	BLM15HD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369000-BLM15HD102SH1D
Ultra Librarian 3D Model	Ultra Librarian BLM15HD102SH1D CAD Model

Alternative Products

Description

The Murata Electronics BLM15HD102SH1D is a ferrite bead and chip filter with an impedance of 1 kOhms @ 100 MHz.

Impedance @ Frequency: 1 kOhms @ 100 MHz
Series: EMIFIL®, BLM15
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 125°C
Current Rating (Max): 250mA
Package / Case: 0402 (1005 Metric)
Height - Seated (Max): 0.022" (0.55mm)
AEC-Q200: Yes
REACH Status: Unaffected
ECCN: EAR99
