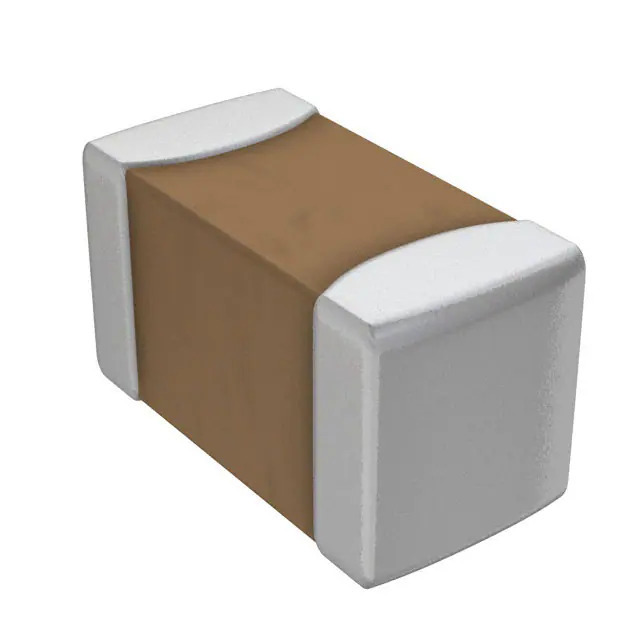

Same model may have multiple batches, images only for reference.

BLM15HD182SZ1D

Name: BLM15HD182SZ1D
Brand: Murata Electronics North America
SKU: 1369016
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BLM15HD182SZ1D
Manufacturer	Murata Electronics North America
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 1.8K OHM 0402 1LN
Datasheet	BLM15HD182SZ1D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Murata Electronics
Series	BLM15H
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	1.8 kOhms @ 100 MHz
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	2.2Ohm
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0402 (1005 Metric)
Mounting Type	Surface Mount
Height (Max)	0.022" (0.55mm)
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Base Product Number	BLM15HD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369016-BLM15HD182SZ1D
Ultra Librarian 3D Model	Ultra Librarian BLM15HD182SZ1D CAD Model

Alternative Products

Description

The BLM15HD182SZ1D is a ferrite bead chip designed by Murata Electronics.

Series: BLM15H
Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max): 0.022" (0.55mm)
Filter Type: Signal Line
Impedance @ Frequency: 1.8 kOhms @ 100 MHz
Current Rating (Max): 200mA
DC Resistance (DCR) (Max): 2.2Ohm
Operating Temperature: -55°C ~ 125°C
Ratings: AEC-Q200
