Same model may have multiple batches, images only for reference.

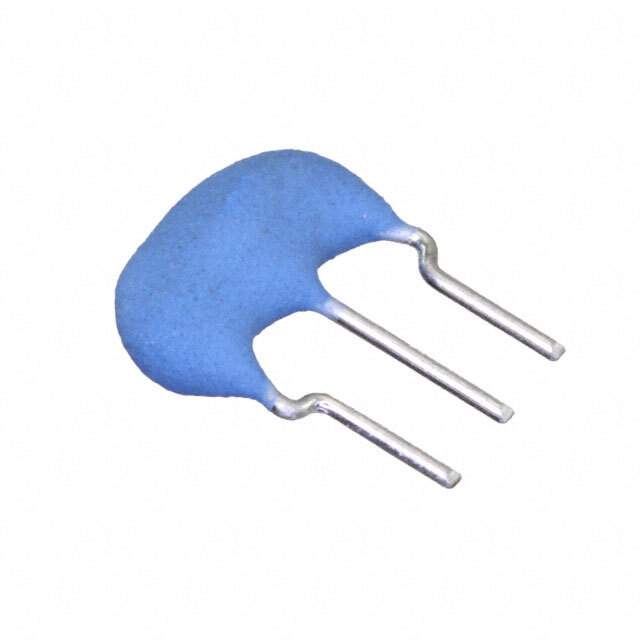

CSTLS10M0G56-B0 Real Image
Same model may have multiple batches, images only for reference.

CSTLS10M0G56-B0

Part No CSTLS10M0G56-B0
Manufacturer Murata Electronics North America
Catalog Oscillators
Description CERAMIC RES 10.0000MHZ 47PF T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features 10 MHz Ceramic Resonator Built in Capacitor 47 pF -0.4, +0.2% 25 Ohms -20°C ~ 80°C Through Hole
Manufacturer Murata Electronics North America
Series CERALOCK® CSTLS
Package Bulk
Part Status Not For New Designs
Operating Temperature Range -20°C ~ 80°C
Mounting Through Hole
Package Radial - 3 Lead, 2.50mm Pitch
Family Name CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 490-12585, CSTLS10M0G56-B0-ND
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867409-CSTLS10M0G56-B0
Ultra Librarian 3D Model Ultra Librarian CSTLS10M0G56-B0 CAD Model

Description

The CERALOCK® CSTLS is a 10 MHz ceramic resonator built with a capacitor of 47 pF -0.4, +0.2% and 25 Ohms and is manufactured by Murata Electronics North America.

  • Frequency: 10 MHz
  • Built-in Capacitor: 47 pF -0.4, +0.2%
  • Equivalent Series Resistance (ESR): 25 Ohms
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C to 80°C
  • Series: CSTLS
  • Part Status: Not For New Designs
  • Supply and Demand Status: Limited
  • Package Quantity: 500 pieces
  • Packaging: Bulk
  • Package / Case: Radial - 3 Lead, 2.50mm Pitch
  • ECCN: EAR99
