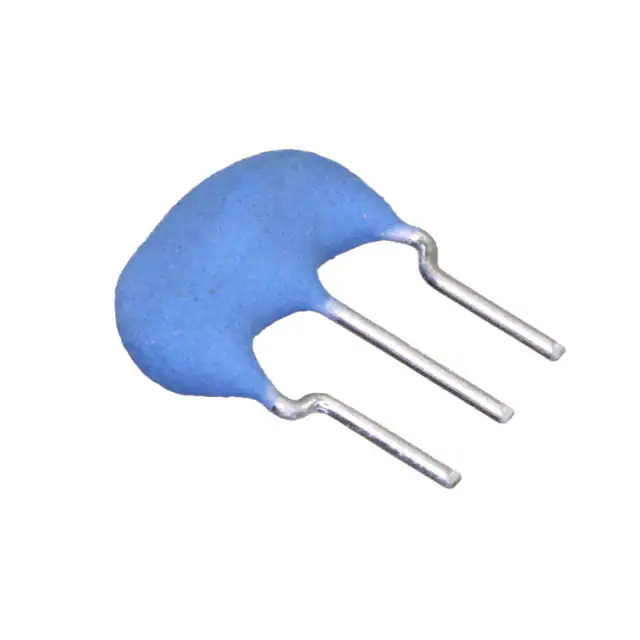

CSTLS6M00G53-B0 Murata Electronics North America
Same model may have multiple batches, images only for reference.

CSTLS6M00G53-B0

Part No CSTLS6M00G53-B0
Manufacturer Murata Electronics North America
Catalog Resonators
Description CERAMIC RES 6.0000MHZ 15PF T/H
Datasheet
CSTLS6M00G53-B0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Resonators
Mfr Murata Electronics
Series CERALOCK® CSTLS
Package Bulk
Product Status Active
Type Ceramic
Frequency 6 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 15 pF
Impedance 30 Ohms
Temperature Range - Operating -20°C ~ 80°C
Mounting Type Through Hole
Package / Case Radial - 3 Lead, 2.50mm Pitch
Size / Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.236" (6.00mm)
Base Product Number CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1366309-CSTLS6M00G53-B0
Ultra Librarian 3D Model Ultra Librarian CSTLS6M00G53-B0 CAD Model

Description

The CSTLS6M00G53-B0 is a ceramic resonator from Murata Electronics.

  • Series: CERALOCK® CSTLS
  • Temperature Range: -20°C to 80°C
  • Frequency: 6 MHz
  • Frequency Stability: ±0.2%
  • Mounting Type: Through Hole
  • Package: Radial-3 Lead, 2.50mm Pitch
  • Size: 0.315" L x 0.118" W (8.00mm x 3.00mm)
  • Height: 0.236" (6.00mm)
