Same model may have multiple batches, images only for reference.

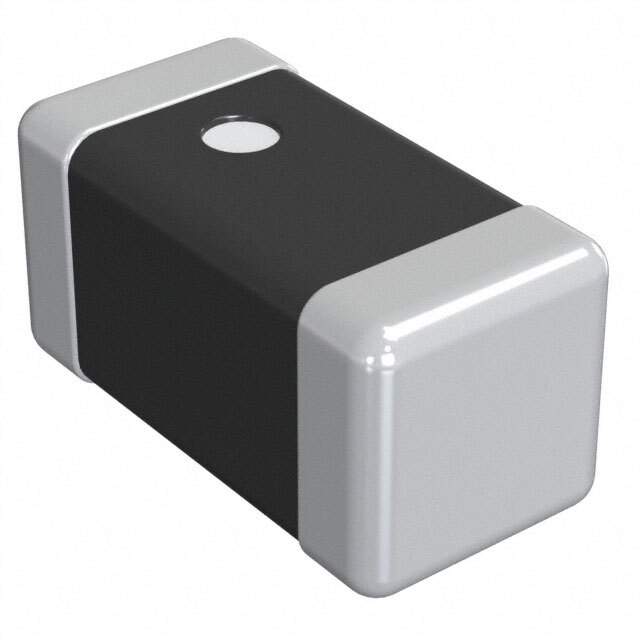

DFE18SANR24MG0L Real Image
Same model may have multiple batches, images only for reference.

DFE18SANR24MG0L

Part No DFE18SANR24MG0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 240NH 3.5A 30 MOHM SMD / 240 nH Shielded Inductor 3.5 A 30mOhm Max 0603 (1608 Metric)
Datasheet
DFE18SANR24MG0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series DFE18SAN
Package Tape & Reel
Material - Core Metal
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 4.9A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number DFE18SAN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-16579-2,490-16579-1,490-16579-6
Standard Package 3,000
Win Source Part Number 1137837-DFE18SANR24MG0L
Ultra Librarian 3D Model Ultra Librarian DFE18SANR24MG0L CAD Model

Description

This electronic component is a fixed inductor belonging to the DFE18SAN series manufactured by Murata Electronics.

  • Series: DFE18SAN
  • Inductance: 240 nH
  • Tolerance: ±20%
  • Shielded: Yes
  • Package: Tape & Reel
  • DC Resistance (DCR): 30mOhm Max
  • Current Saturation (Isat): 4.9A
  • Temperature Range: -40°C ~ 85°C
