Same model may have multiple batches, images only for reference.

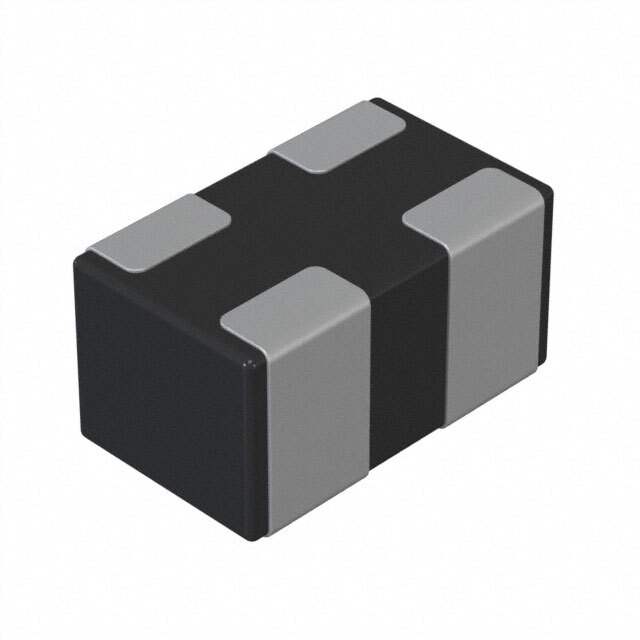

DLP0NSN670HL2L Real Image
Same model may have multiple batches, images only for reference.

DLP0NSN670HL2L

Part No DLP0NSN670HL2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 110MA 2LN 67 OHM SMD
Datasheet
DLP0NSN670HL2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 67 Ohm @ 100MHz
Current Rating (Max) 110mA
DC Resistance (DCR) (Max) 3 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Dimension 0302 (0806 Metric), 4 Lead
Win Source Part Number 000717-DLP0NSN670HL2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DLP0NSN670HL2L CAD Model

Description

Product Description for DLP0NSN670HL2L

The DLP0NSN670HL2L offers a superior solution for eliminating unwanted noise in high-speed data lines. It excels in protecting sensitive electronics from EMI, ensuring stable and efficient data transfer.

Applications and Projects:

  • Laptop and desktop computers
  • Display interfaces
  • Network communication equipment
  • Audio-visual equipment
  • Industrial control systems

Features and Benefits:

  • Efficient noise suppression for improved device functionality
  • Supports high-speed signal integrity
  • Low profile for space-saving designs
  • Durable and reliable under various environmental conditions
  • Easy to integrate with existing circuit boards

Opting for the DLP0NSN670HL2L in your electronic systems guarantees minimal interference, thus enriching device performance and reliability.
