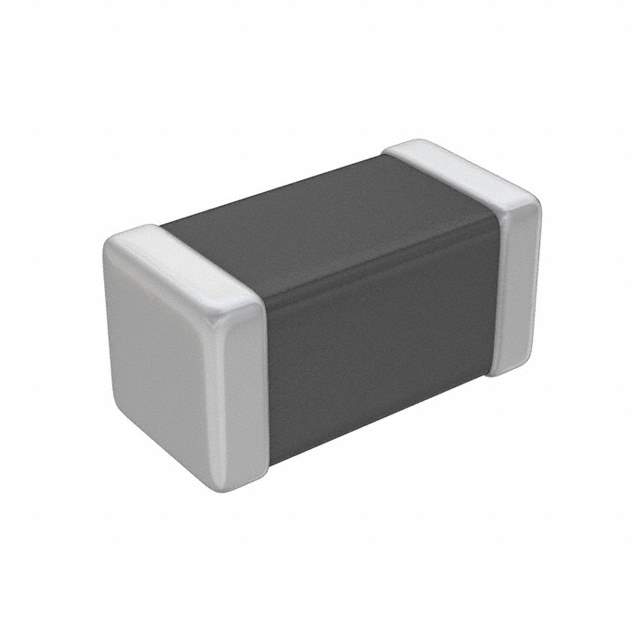

The MPZ0603S470CT00 is a multilayer chip impedance bead manufactured by TDK Corporation. It's designed to suppress noise in electronic circuits, particularly high-frequency noise. These impedance beads are commonly used in power supplies, signal lines, and other sensitive circuits to prevent electromagnetic interference (EMI) and maintain signal integrity.

Applications:

• Power Supply Noise Filtering: Used to filter noise in power supply lines.
• Signal Line Noise Suppression: Suppresses noise on signal lines to improve signal integrity.
• EMI Suppression: Reduces electromagnetic interference (EMI) in electronic circuits.
• Decoupling: Provides decoupling for sensitive components.
• RF Circuits: Used in RF circuits to filter unwanted signals.

Features:

• Multilayer Structure: Features a multilayer structure for high impedance at high frequencies.
• Small Size: Available in a small 0603 package size (0.06 inch x 0.03 inch).
• High Impedance: Offers high impedance over a wide frequency range.
• Low DC Resistance: Exhibits low DC resistance to minimize power loss.
• Surface Mount Technology (SMT): Designed for surface mount assembly.

Benefits:

• Noise Suppression: Effectively suppresses noise in electronic circuits.
• Improved Signal Integrity: Enhances signal integrity by reducing noise on signal lines.
• Reduced EMI: Reduces electromagnetic interference (EMI) to meet regulatory requirements.
• Space Saving: Small size allows for dense circuit designs.
• Easy Assembly: Designed for easy surface mount assembly.

Technical Specifications: The MPZ0603S470CT00 has an impedance of 47 ohms at 100 MHz. The DC resistance (DCR) is typically less than 0.3 ohms. The rated current is specified in the TDK datasheet. Consult the datasheet for detailed parameters such as self-resonant frequency, operating temperature range, and typical impedance characteristics. This impedance bead is RoHS compliant. It is crucial to choose the correct impedance bead for the specific application frequency and current requirements.
