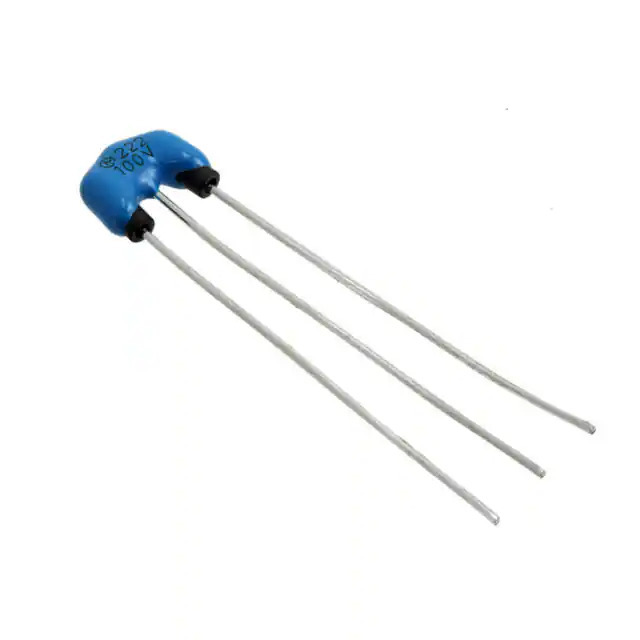

Same model may have multiple batches, images only for reference.
DSS1NB32A223Q91A Murata Electronics North America
Same model may have multiple batches, images only for reference.

DSS1NB32A223Q91A

Part No DSS1NB32A223Q91A
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 0.022UF TH
Datasheet
DSS1NB32A223Q91A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Murata Electronics
Series EMIFIL®, DSS1
Product Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Center / Cutoff Frequency -
Attenuation Value -
Resistance - Channel (Ohms) -
Current 6 A
Values C = 0.022µF
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Size / Dimension 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height 0.295" (7.50mm)
Base Product Number DSS1NB32A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369422-DSS1NB32A223Q91A
Ultra Librarian 3D Model Ultra Librarian DSS1NB32A223Q91A CAD Model

Description

The DSS1NB32A223Q91A is an EMI/RFI filter from Murata Electronics.

  • Manufacturer: Murata Electronics
  • Series: EMIFIL® and DSS1
  • Product: DSS1NB32A223Q91A
  • Filter Type: Low Pass
  • Voltage Rating: 100V
  • Application: General Purpose
  • Temperature Range: -40°C to 85°C
  • Package: Radial, 3 Leads
  • Size: 0.335" L x 0.138" W (8.50mm x 3.50mm)
  • Height: 0.295" (7.50mm)
  • Current Rating: 6A
  • ESD Protection: No
  • REACH: Unaffected
  • ECCN: EAR99
