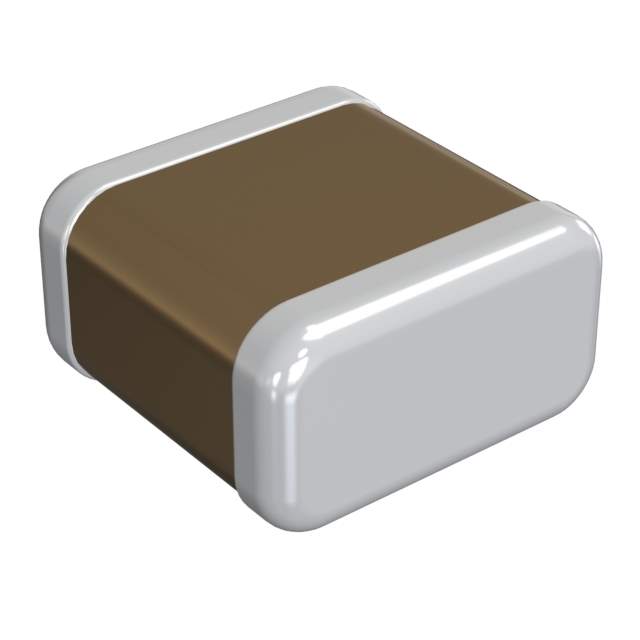

The GRM0335C1E430JA01D is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. It's designed for general-purpose applications requiring a small size and stable performance.

Applications

• Bypass capacitors in power supplies
• Decoupling capacitors in digital circuits
• Smoothing capacitors in analog circuits
• General-purpose applications in electronic devices
• Mobile phones and other portable devices

Features

• Capacitance: 43 pF
• Voltage rating: 25 VDC
• Temperature characteristic: C0G (NP0)
• Tolerance: ±5%
• Case size: 0201 (0603 Metric)
• RoHS compliant

Benefits

• Small size allows for high-density mounting on printed circuit boards.
• Stable capacitance over temperature provides consistent performance in varying operating conditions.
• Low ESR (Equivalent Series Resistance) minimizes power dissipation and improves circuit efficiency.
• High reliability ensures long-term performance in demanding applications.
• RoHS compliance ensures environmental friendliness.

Additional Details

The GRM0335C1E430JA01D utilizes a ceramic dielectric material with a C0G (NP0) temperature characteristic, which provides excellent capacitance stability over a wide temperature range. The 0201 case size (0.6 mm x 0.3 mm) makes it suitable for applications where space is limited. The capacitor is designed for reflow soldering and is available in tape and reel packaging for automated assembly. Its low ESR and ESL (Equivalent Series Inductance) contribute to its excellent high-frequency performance. It's commonly used in a wide range of electronic devices for decoupling, bypassing, and filtering applications. The tight tolerance of ±5% ensures consistent performance across different units.

This capacitor is often used in critical circuits where stability and reliability are paramount. Its small size and excellent performance make it a popular choice for designers of portable and high-density electronic devices.
