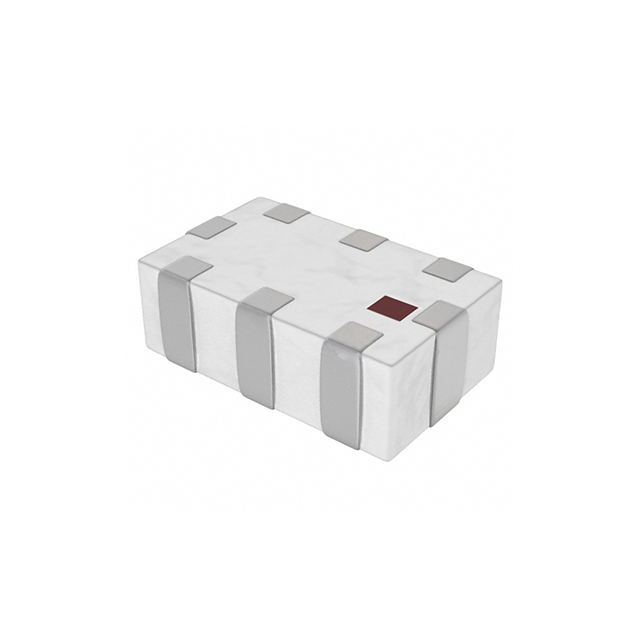

Same model may have multiple batches, images only for reference.
LFD21920MDP1A048 Murata Electronics North America
Same model may have multiple batches, images only for reference.

LFD21920MDP1A048

Part No LFD21920MDP1A048
Manufacturer Murata Electronics North America
Catalog RF Filters
Description RF FILTER SIGNAL CONDITION 0805 / Frequency RF Filter (Radio Frequency) Bandwidth 0805 (2012 Metric), 8 PC Pad
Datasheet
LFD21920MDP1A048 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Murata Electronics North America
Package Tape & Reel
Product Status Not For New Designs
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 8 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
Base Product Number LFD21
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 179297-LFD21920MDP1A048
Ultra Librarian 3D Model Ultra Librarian LFD21920MDP1A048 CAD Model

Description

The 179297-LFD21920MDP1A048 is a surface mount RF filter from Murata Electronics.

  • Category: RF filters
  • Function: designed to provide high-performance filtering in electronic circuits
  • Packaging: packaged in tape and reel format
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: maximum height of 0.041" (1.05mm)
  • Package Type: 0805 (2012 Metric) with 8 PC Pad configuration
  • Series: LFD21 series filter
  • Standard Package: 4,000 pcs
  • Mounting: surface mountable
  • ECCN: EAR99
  • Status: not for new designs
