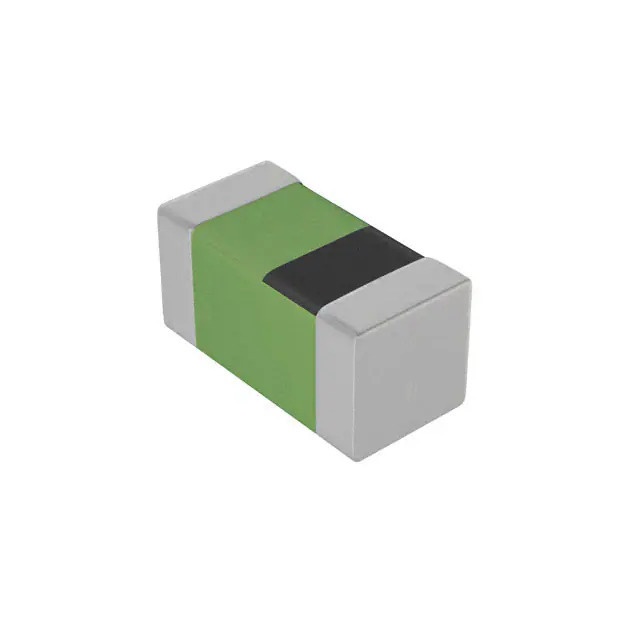

LQG15HH15NJ02D

Name: LQG15HH15NJ02D
Brand: Murata Electronics North America
SKU: 1369494
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQG15HH15NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 15NH 300MA 320MOHM SMD
Datasheet	LQG15HH15NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQG15
Package	Tape & Reel
Product Status	Active
Type	Multilayer
Material - Core	Air
Inductance	15 nH
Tolerance	±5%
Current Rating (Amps)	300 mA
Current - Saturation (Isat)	-
Shielding	-
DC Resistance (DCR)	320mOhm Max
Q @ Freq	8 @ 100MHz
Frequency - Self Resonant	2.5GHz
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.022" (0.55mm)
Base Product Number	LQG15HH
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369494-LQG15HH15NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQG15HH15NJ02D CAD Model

Alternative Products

Description

The LQG15HH15NJ02D is a fixed inductor from Murata Electronics.

Series: LQG15
Package Size: 0402 (1005 Metric)
Mounting Type: Surface Mount
Inductance: 15 nH
Tolerance: ±5%
Current Rating: 300 mA
DC Resistance (DCR): 320mOhm Max
Temperature Range: -55°C to 125°C
Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height: 0.022" (0.55mm)
REACH: Unaffected
ECCN: EAR99
Q Value: 8 @ 100MHz
Self-Resonant Frequency: 2.5GHz
