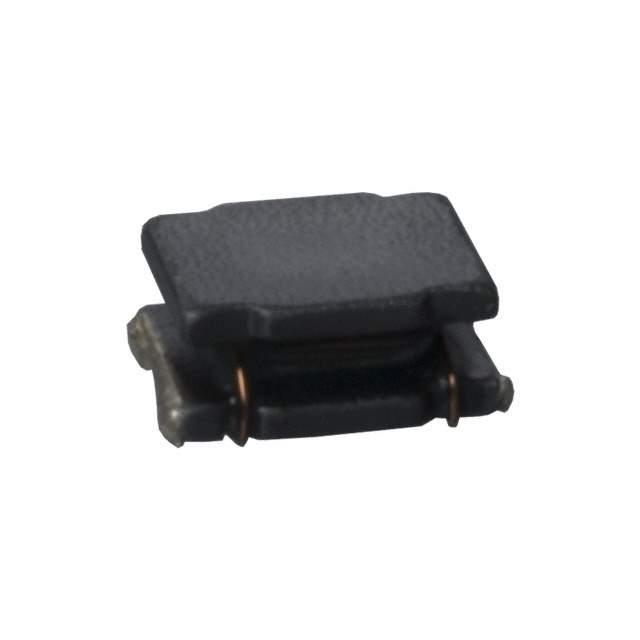

LQH2MCN150K02L Real Image
Same model may have multiple batches, images only for reference.

LQH2MCN150K02L

Part No LQH2MCN150K02L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Unshielded Wirewound 15uH 10% 1MHz Ferrite 0.2A 2.08Ohm DCR 0806 T/R / FIXED IND 15UH 200MA 1.6 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±10%
Current Rating 200mA
DC Resistance (DCR) 2.08 Ohm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.037" (0.95mm)
Win Source Part Number 124567-LQH2MCN150K02L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQH2MCN_02
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQH2MCN150K02L CAD Model

Description

This electronic component, manufactured by Murata Electronics North America, is a wirewound type inductor with an inductance of 15μH and a current rating of 200mA.

  • Height: 0.037" (0.95mm) (Max)
  • Mounting Technology: SMD (SMT)
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Operating Temperature Range: -40°C to 85°C
  • DC Resistance (DCR): 2.08 Ohm Max
  • Category: Inductors, Coils, Chokes
  • Popularity: High
