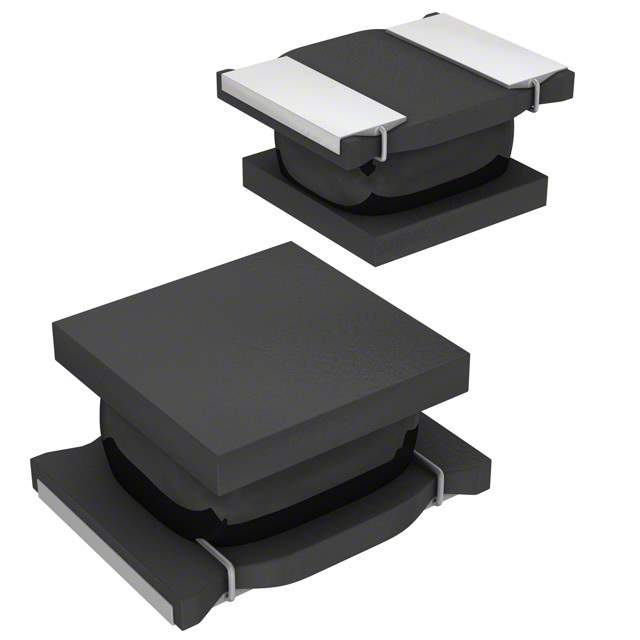

LQH32PH2R2NNCL

Name: LQH32PH2R2NNCL
Brand: Murata Electronics North America
SKU: 1160729
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQH32PH2R2NNCL
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.85A 76.8 MOHM / 2.2 µH Shielded Drum Core, Wirewound Inductor 1.85 A 76.8mOhm Max Nonstandard
Datasheet	LQH32PH2R2NNCL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Murata Electronics
Series	LQH32
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±30%
Current Rating (Amps)	1.85 A
Current - Saturation (Isat)	2A
Shielding	Shielded
DC Resistance (DCR)	76.8mOhm Max
Frequency - Self Resonant	70MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	1210 (3225 Metric)
Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.067" (1.70mm)
Base Product Number	LQH32PH
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	490-16006-6,490-16006-1,490-16006-2
Standard Package	2,000
Win Source Part Number	1160729-LQH32PH2R2NNCL
Ultra Librarian 3D Model	Ultra Librarian LQH32PH2R2NNCL CAD Model

Alternative Products

Description

The Murata Electronics component with the Win Source Part Number 1160729-LQH32PH2R2NNCL is a fixed inductor with a drum core and wirewound type.

Inductor Type: Fixed
Core Type: Drum Core
Winding Type: Wirewound
Series: Series Product
Package: Unique Package
Inductance: 2.2 µH
Tolerance: ±30%
Supplier Device Package: 1210 (3225 Metric)
Temperature Range: -40°C to 85°C
AEC-Q200: Yes
Recommended Use: Automotive
Win Source Part Number: 1160729-LQH32PH2R2NNCL
Manufacturer: Murata Electronics
