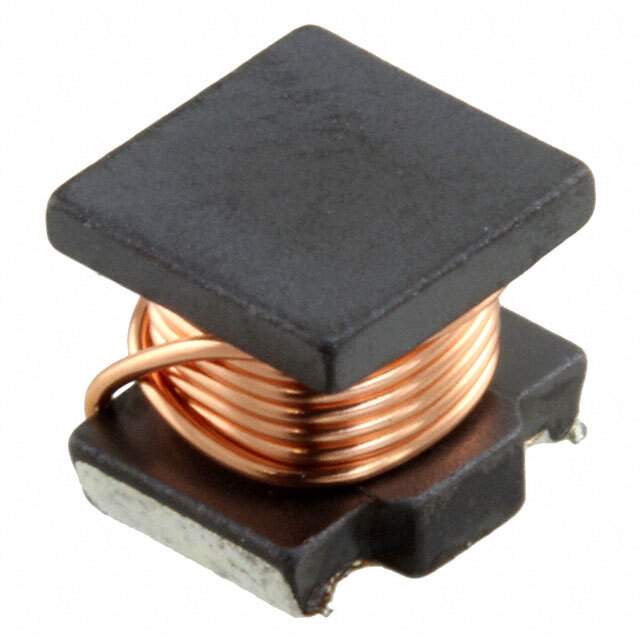

LQH55DN330M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN330M03L

Part No LQH55DN330M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 33UH 900MA 320 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating 900mA
DC Resistance (DCR) 448 mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 019992-LQH55DN330M03L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LQH55DN330M03L CAD Model

Description

The Murata Electronics North America 198296 is a wirewound inductor with the following specifications:

  • Inductance: 33u00B5H
  • Current Rating: 900mA
  • Tolerance: u00B120%
  • DC Resistance (DCR): 448 mOhm Max
  • Core Material: Ferrite
  • Self-Resonant Frequency: 12MHz
  • Test Frequency: 1MHz
  • Category: Inductor, Coil, Choke
  • Mounting: SMD (SMT)
  • Height: 0.197" (5.00mm)
  • Popularity: Medium
  • Supply and Demand Status: Limited
