Same model may have multiple batches, images only for reference.

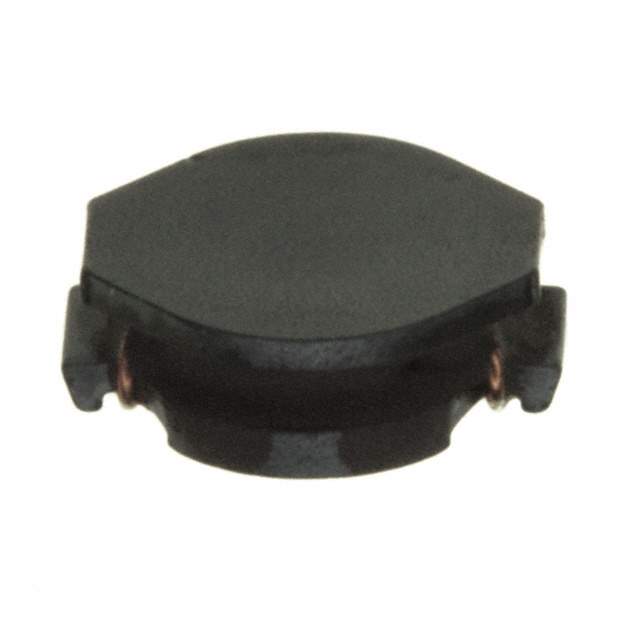

LQH55PN2R2NR0L Real Image
Same model may have multiple batches, images only for reference.

LQH55PN2R2NR0L

Part No LQH55PN2R2NR0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.5A 31 MOHM SMD / Inductor Power Chip Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.1A 0.031Ohm DCR 2220 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH55
Part Status Obsolete(EOL)
Type Wirewound
Inductance 2.2μH
Tolerance ±30%
Current Rating 2.5A
Current - Saturation 2.1A
Shielding Shielded
DC Resistance (DCR) 31 mOhm
Frequency - Self Resonant 60MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 100kHz
Mounting SMD
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 780054-LQH55PN2R2NR0L
Popularity Medium
Supply and Demand Status Limited
Family Name LQH55PN_R0
Introduction Date October 16, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LQH55PN2R2NR0L CAD Model

Description

The LQH55PN2R2NR0L is an obsolete (EOL) wirewound inductor manufactured by Murata Electronics North America.

  • Inductance: 2.2μH
  • Tolerance: ±30%
  • Current Rating: 2.5A
  • Shielded: Yes
  • Operating Temperature Range: -40°C to 85°C
  • Package: 2220 (5750 Metric)
  • DC Resistance (DCR): 31 mOhm
  • Dimension: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Estimated EOL Date: obsolete / end of life
  • Alternative Parts: ELL6PM2R0N, CDRH50D20T150NP-2R2NC, SCDS5D18T-2R0T-S-N, CTP5020F-2R2N
