Same model may have multiple batches, images only for reference.

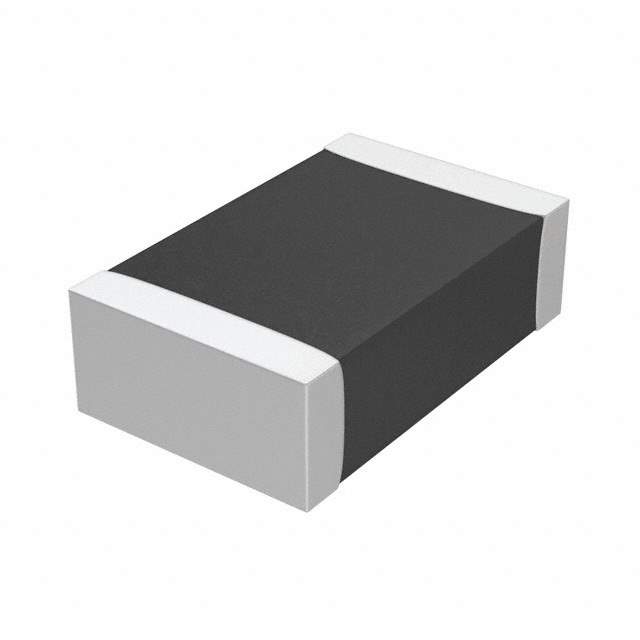

LQM21PN1R5MC0D Real Image
Same model may have multiple batches, images only for reference.

LQM21PN1R5MC0D

Part No LQM21PN1R5MC0D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Multi-Layer 1.5uH 20% 1MHz Ferrite 0.7A 0.325Ohm DCR 0805 T/R / FIXED IND 1.5UH 700MA 260 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±20%
Current Rating 700mA
DC Resistance (DCR) 325 mOhm Max
Frequency - Self Resonant 70MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 020024-LQM21PN1R5MC0D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQM21PN_C0
Introduction Date August 21, 2007
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LQM21PN1R5MC0D CAD Model

Description

The LQM21PN1R5MC0D is a multilayer inductor manufactured by Murata Electronics North America.

  • Inductance: 1.5u00B5H
  • Tolerance: u00B120%
  • Current Rating: 700mA
  • DC Resistance (DCR): 325 mOhm Max
  • Package Size: 0805 (2012 Metric)
  • Mounting Technology: SMD (SMT)
  • Material: Ferrite Core
  • Frequency Self-Resonant: 70MHz
  • Temperature Range: -55u00B0C to 125u00B0C

This product is designed for use in various electronic applications that require high performance and reliability.
