Same model may have multiple batches, images only for reference.

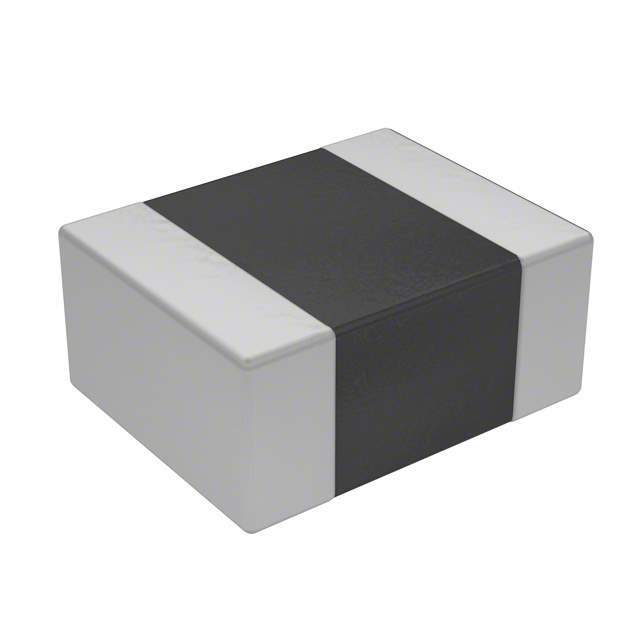

LQM2MPNR47MGHL Real Image
Same model may have multiple batches, images only for reference.

LQM2MPNR47MGHL

Part No LQM2MPNR47MGHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 2.5A 46 MOHM SMD
Datasheet
LQM2MPNR47MGHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 470nH
Tolerance ±20%
Current Rating 2.5A
Current - Saturation 3.4A
DC Resistance (DCR) 46 mOhm Max
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 072069-LQM2MPNR47MGHL
Ultra Librarian 3D Model Ultra Librarian LQM2MPNR47MGHL CAD Model

Description

The Murata Electronics North America LQM2MPNR47MGHL is a multilayer inductor designed for use in various electronic applications.

  • Inductance: 470nH
  • Current Rating: 2.5A
  • Package: 0806 (2016 Metric)
  • Temperature Range: -40°C to 85°C
  • DC Resistance (DCR): 46 mOhm Max
  • Tolerance: ±20%

The device is popular and has an active status.
