Same model may have multiple batches, images only for reference.

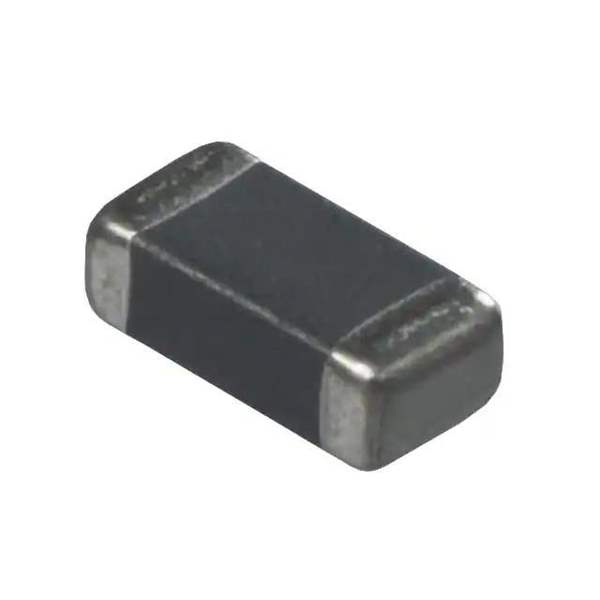

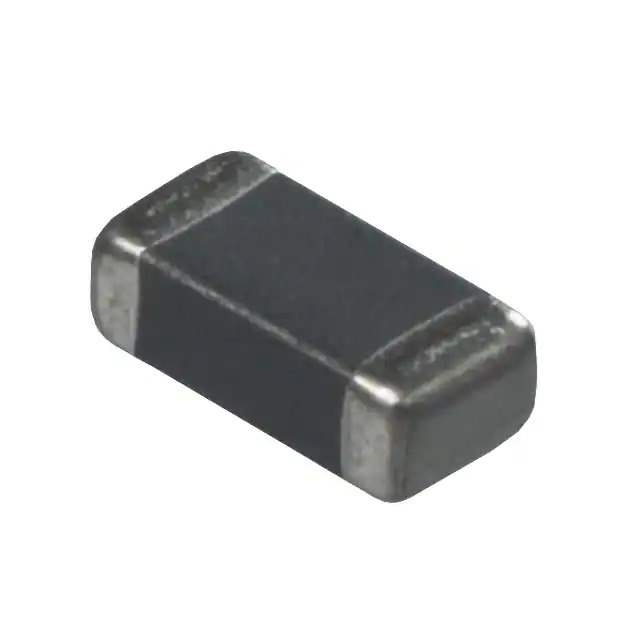

LQM31PN1R5M00L Real Image
Same model may have multiple batches, images only for reference.

LQM31PN1R5M00L

Part No LQM31PN1R5M00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1.5UH 1A 175 MOHM SMD
Datasheet
LQM31PN1R5M00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series LQM31
Package Tape & Reel
Product Status Active
Type Multilayer
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Shielding Shielded
DC Resistance (DCR) 175mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number LQM31PN
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 878107-LQM31PN1R5M00L
Ultra Librarian 3D Model Ultra Librarian LQM31PN1R5M00L CAD Model

Description

The Murata Electronics North America 878107-LQM31PN1R5M00L is a fixed inductor component in the category of inductors, coils, and chokes.

  • Series: LQM31
  • Type: Shielded multilayer inductor
  • Package: Tape & reel
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Inductance: 1.5 μH
  • Maximum Seated Height: 0.037" (0.95mm)
  • Standard Package: 3,000 pcs
  • Tolerance: ±20%
  • Frequency @ Self-Resonant: 50MHz
  • Mounting Type: Surface mount
  • Package/Case: 1206 (3216 Metric)
  • DC Resistance (DCR): 175mOhm max
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8504.50.8000
