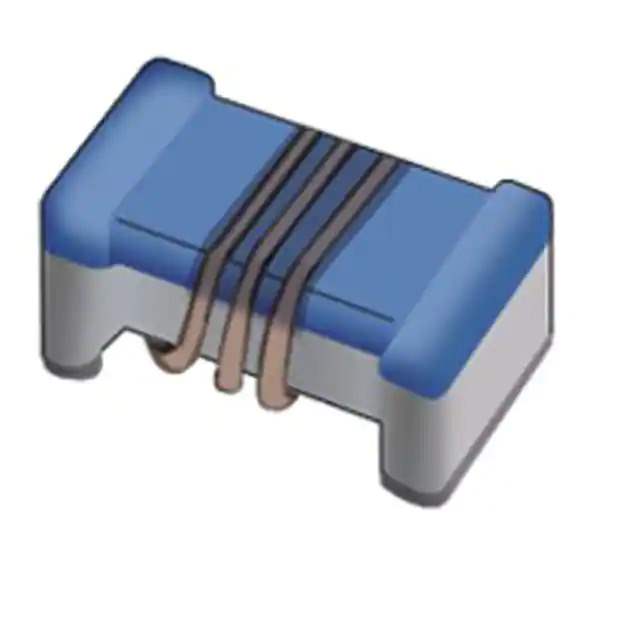

LQW15AN4N5G80D

Name: LQW15AN4N5G80D
Brand: Murata Electronics North America
SKU: 1001040
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQW15AN4N5G80D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND
Datasheet	LQW15AN4N5G80D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics North America
Series	LQW15
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	4.5 nH
Tolerance	±2%
Current Rating (Amps)	1.45 A
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	34 @ 250MHz
Frequency - Self Resonant	9.6GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Base Product Number	LQW15AN
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1001040-LQW15AN4N5G80D
Ultra Librarian 3D Model	Ultra Librarian LQW15AN4N5G80D CAD Model

Alternative Products

Description

The LQW15AN4N5G80D is a wirewound fixed inductor from Murata Electronics.

Series: LQW15
Size: 0.039" L x 0.024" W (1.00mm x 0.60mm)
Inductance: 4.5 nH
Tolerance: ±2%
Temperature Range: -55°C to 125°C
Shielding: Unshielded
Package: 0402 (1005 Metric)
DC Resistance (DCR): 60mOhm Max
Current Rating: 1.45 A
Q @ Freq: 34 @ 250MHz
Frequency Self-Resonant: 9.6GHz
Mounting: Surface Mountable
Package Type: Tape & Reel
Magnetic: Non-Magnetic
Standard Package: 10,000 pcs
REACH Status: Unaffected
