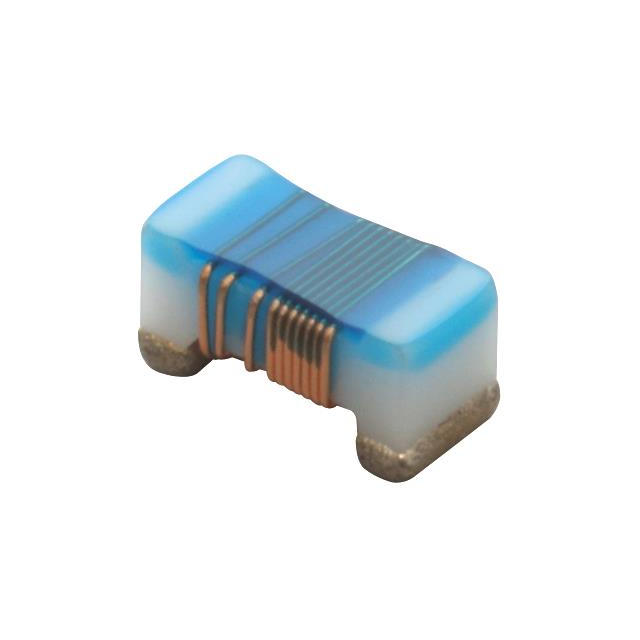

LQW18AN12NG80D

Name: LQW18AN12NG80D
Brand: Murata Electronics North America
SKU: 1327915
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LQW18AN12NG80D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 12NH 1.5A 64 MOHM SMD / 12 nH Unshielded Drum Core, Wirewound Inductor 1.5 A 64mOhm Max 0603 (1608 Metric)
Datasheet	LQW18AN12NG80D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Murata Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	12 nH
Tolerance	±2%
Current Rating (Amps)	1.5 A
Shielding	Unshielded
DC Resistance (DCR)	64mOhm Max
Q @ Freq	37 @ 250MHz
Frequency - Self Resonant	5GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	LQW18AN
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	LQW18AN12NG80D-ND,490-17900-6,490-17900-1,490-17900-2
Standard Package	4,000
Win Source Part Number	1327915-LQW18AN12NG80D
Ultra Librarian 3D Model	Ultra Librarian LQW18AN12NG80D CAD Model

Alternative Products

Description

The LQW18AN12NG80D is a fixed inductor designed by Murata Electronics.

Inductance: 12 nH
Q @ Freq: 37 @ 250MHz
Frequency Self-Resonant: 5GHz
DC Resistance (DCR): 64mOhm Max
Package Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height Seated (Max): 0.039" (1.00mm)
Tolerance: ±2%
Material: Ferrite
Shielding: Shielded
Packaging: Reel - 4000 pieces
Operating Temperature: -55°C ~ 125°C
ECCN: EAR99
Popularity: Low
MSL Level: 1 (unlimited)
HTSUS: 8504.50.8000
