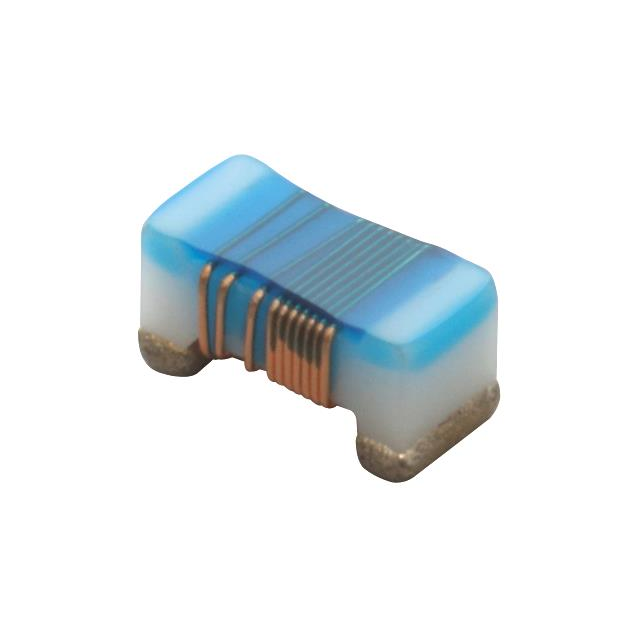

The LQW18AN2N4C80D is a high-frequency wire-wound chip inductor manufactured by Murata Electronics North America. It is designed for applications in RF circuits, wireless communication, and high-frequency filtering. This inductor features a small size and excellent Q factor, making it suitable for demanding applications.

Applications

• RF Circuits
• Wireless Communication Devices
• Mobile Phones
• Bluetooth Modules
• GPS Devices
• Matching Networks
• Filter Circuits

Features

• Wire-Wound Construction: Provides high Q factor and excellent performance at high frequencies.
• Small Size: 0603 case size (1.6mm x 0.8mm) for compact designs.
• High Self-Resonant Frequency (SRF): Ensures stable performance at high frequencies.
• RoHS Compliant: Environmentally friendly, lead-free construction.

Benefits

• Miniaturization: Enables smaller and more compact electronic devices.
• Improved Performance: High Q factor and SRF ensure efficient operation in RF circuits.
• Reliability: Robust construction provides consistent performance.
• Easy Integration: Surface mount design simplifies assembly and integration.

Technical Specifications

Key specifications of the LQW18AN2N4C80D typically include:

• Inductance: 2.4 nH
• Tolerance: ±0.2 nH
• Self-Resonant Frequency (SRF): Consult datasheet for specific value (e.g., 6.5 GHz)
• Q Factor: Consult datasheet for specific value at a given frequency (e.g., 25 at 500 MHz)
• Rated Current: Consult datasheet for specific current rating (e.g., 600mA)
• Operating Temperature Range: Typically -55°C to +125°C
• Dimensions: 1.6mm x 0.8mm
