Same model may have multiple batches, images only for reference.

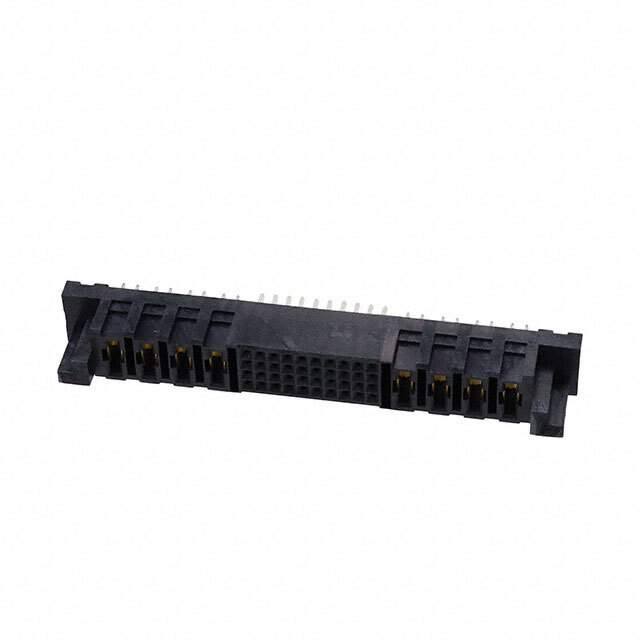

PESC-04-40-04-01-L-VT

Name: PESC-04-40-04-01-L-VT
Brand: Samtec Inc.
SKU: 1179592
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PESC-04-40-04-01-L-VT
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN SKT .1" PWR/SNGL COMBO / 48 (40 + 8 Power) Position Receptacle Connector Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	PowerStrip™ 40 PESC
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	48 (40 + 8 Power)
Number of Positions Loaded	All
Number of Rows	4
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.497" (12.62mm)
Contact Length - Post	0.097" (2.47mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Copper Alloy
Base Product Number	PESC-04
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	612-PESC-04-40-04-01-L-VT
Standard Package	16
Win Source Part Number	1179592-PESC-04-40-04-01-L-VT
Ultra Librarian 3D Model	Ultra Librarian PESC-04-40-04-01-L-VT CAD Model

Alternative Products

Description

The PowerStrip™ 40 PESC series receptacle connector is a rectangular connector with 48 positions and 4 rows.

Positions: 48
Rows: 4
Pitch: 0.100" (2.54mm)
Connection Type: Board-to-Board
Fastening Type: Push-Pull
Termination: Solder
Contact Type: Female Socket
Contact Material: Copper Alloy
Contact Finish (Mating): Gold, 10.0µin (0.25µm)
Contact Finish (Post): Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
Package: Tray
