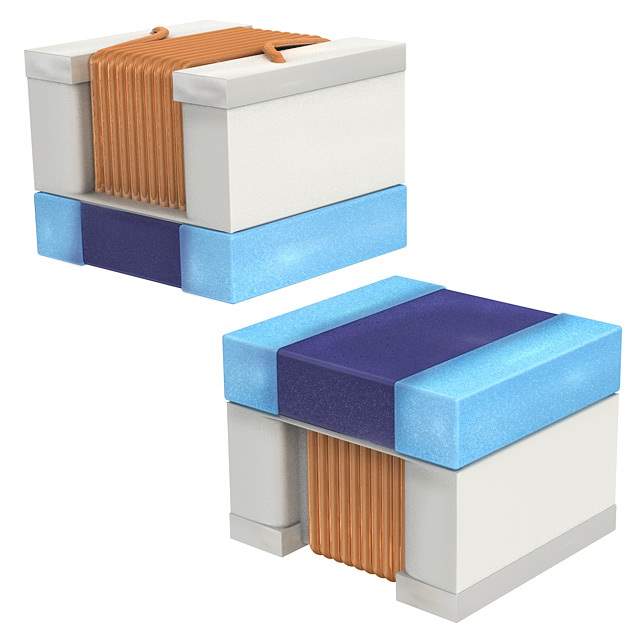

LQW2BAS22NJ00L Real Image
Same model may have multiple batches, images only for reference.

LQW2BAS22NJ00L

Part No LQW2BAS22NJ00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22NH 500MA 220MOHM SMD / 22 nH Unshielded Wirewound Inductor 500 mA 220mOhm Max 0805 (2015 Metric)
Datasheet
LQW2BAS22NJ00L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQW2
Package Tape & Reel
Type Wirewound
Material - Core Air
Inductance 22 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 220mOhm Max
Q @ Freq 55 @ 500MHz
Frequency - Self Resonant 2.6GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting SMD (SMT)
Package / Case 0805 (2015 Metric)
Dimension 0.082" L x 0.060" W (2.09mm x 1.53mm)
Height - Seated (Max) 0.060" (1.52mm)
Base Product Number LQW2BAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-5652-6,490-5652-2,490-5652-1
Standard Package 2,000
Win Source Part Number 1171925-LQW2BAS22NJ00L
Ultra Librarian 3D Model Ultra Librarian LQW2BAS22NJ00L CAD Model

Description

The LQW2BAS22NJ00L fixed inductor from Murata Electronics is a wirewound component with an inductance of 22 nH and a tolerance of ±5%.

  • Component Type: Fixed Inductor
  • Technology: Wirewound
  • Inductance: 22 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 220mOhm Max
  • Maximum Seated Height: 0.060" (1.52mm)
  • Shielding: Unshielded
  • Packaging: Tape & Reel
  • Mounting Type: Surface Mount Device (SMD)
  • Package/Case Size: 0805 (2015 Metric)
  • Q @ Freq: 55 @ 500MHz
  • Frequency - Self Resonant: 2.6GHz
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
