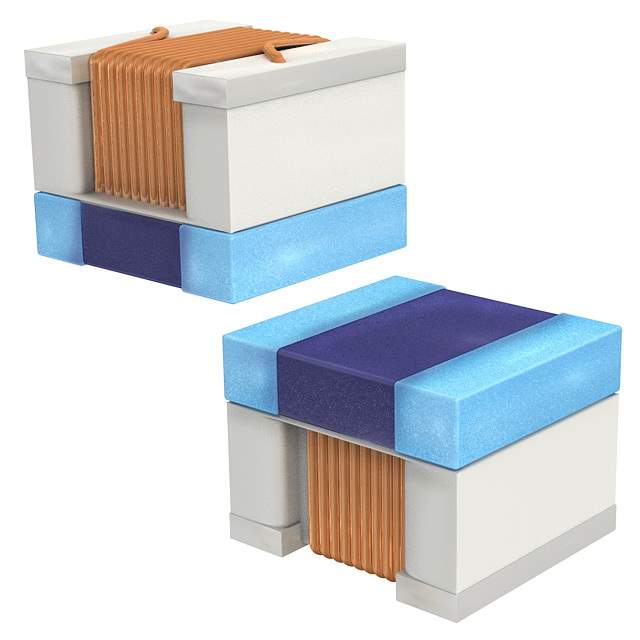

The Murata Electronics LQW2UASR82J0CL is a wirewound inductor used in various applications such as filtering, DC-DC converters, and power supplies.

• Size: 0.103" L x 0.096" W (2.62mm x 2.45mm)
• Seated Height (Max): 0.080" (2.03mm)
• Inductance: 820 nH
• Inductance Tolerance: ±5%
• Core Material: Non-magnetic
• Q @ Freq: 45 @ 100MHz
• Self-Resonant Frequency: 350MHz
• DC Resistance (DCR): 1.61Ohm Max
• Mounting Style: Surface Mount
• Package Quantity: 2,000
• Operating Temperature Range: -40°C ~ 85°C
• ROHS3 Compliant: Yes
• ECCN: EAR99
