Same model may have multiple batches, images only for reference.

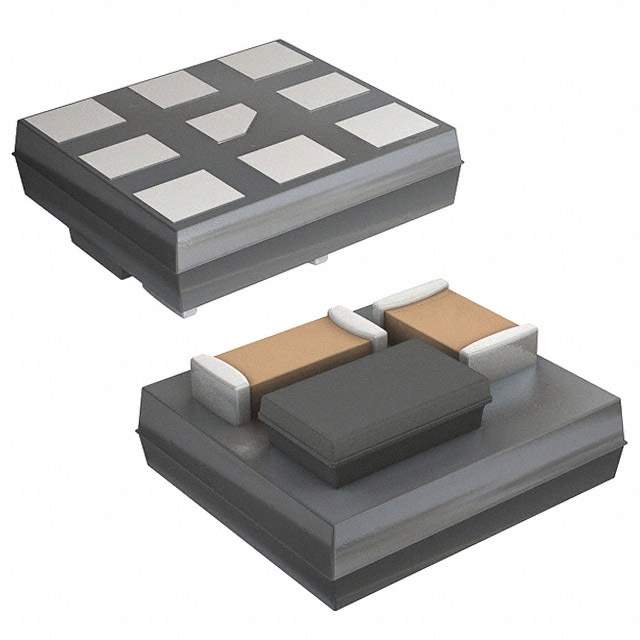

LXDC3EP33F-204 Real Image
Same model may have multiple batches, images only for reference.

LXDC3EP33F-204

Part No LXDC3EP33F-204
Manufacturer Murata Electronics North America
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V / Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 4V - 5.5V Input
Datasheet
LXDC3EP33F-204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Electronics
Packaging Reel - TR
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Current - Output (Max) 1A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -30°C ~ 85°C
Efficiency 94%
Mounting Surface Mount
Case / Package 9-SMD Module
Size / Dimension 0.14" L x 0.13" W x 0.05" H (3.5mm x 3.2mm x 1.3mm)
Base Product Number LXDC3EP
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 490-12574-1,490-12574-2,490-12574-6
Standard Package 1,000
Win Source Part Number 1335262-LXDC3EP33F-204
Ultra Librarian 3D Model Ultra Librarian LXDC3EP33F-204 CAD Model

Description

The LXDC3EP33F-204 is a non-isolated PoL module from Murata Electronics that is ideal for ITE (commercial) applications.

  • Package: Surface-mount
  • Packaging: Reel-TR
  • Standard Package: 1,000
  • Maximum Output Current: 1A
  • Minimum Input Voltage: 4V
  • Maximum Input Voltage: 5.5V
  • Voltage Output 1: 3.3V
  • Voltage Outputs: No other voltage outputs
  • Efficiency: 94 percent
  • Size: 0.14" L x 0.13" W x 0.05" H (3.5mm x 3.2mm x 1.3mm)
  • Case: 9-SMD module
  • Features: Remote on/off, OCP, OTP, and UVLO
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • MSL Level: 1 (unlimited)
  • Other Part Numbers: 490-12574-1, 490-12574-2, and 490-12574-6
  • Base Product Number: LXDC3EP
