Same model may have multiple batches, images only for reference.

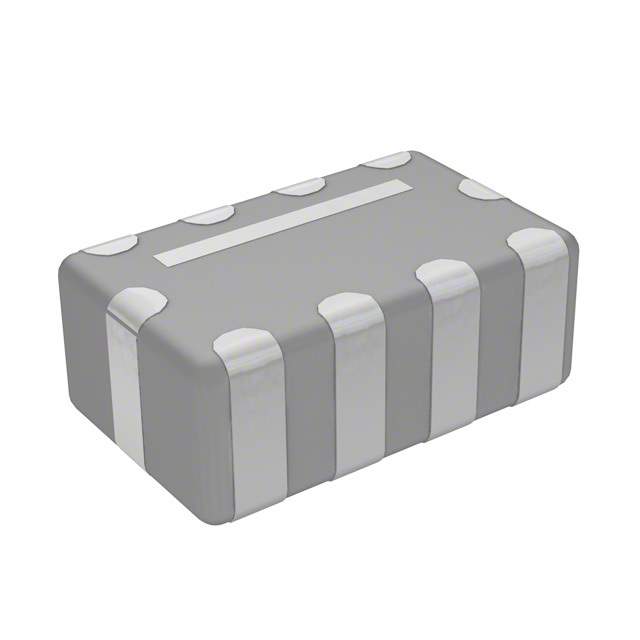

NFA21SL337V1A45L Real Image
Same model may have multiple batches, images only for reference.

NFA21SL337V1A45L

Part No NFA21SL337V1A45L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 330MHZ SMD
Datasheet
NFA21SL337V1A45L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 330MHz (Cutoff)
Attenuation Value 15dB @ 800MHz
Current 100mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.024" (0.60mm)
Win Source Part Number 209156-NFA21SL337V1A45L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFA21SL337V1A45L CAD Model

Description

This low pass type filter is manufactured by Murata Electronics North America and has a Win Source Part Number of 209156-NFA21SL337V1A45L.

  • Packaging: Reel
  • Mounting: Surface-mountable
  • Application: Data lines in mobile devices
  • Voltage Rating: 10V
  • Channels: Four
  • Current Rating: 100mA
  • Attenuation: 15dB @ 800MHz
  • Filter Order: Second-order
  • Center/Cutoff Frequency: 330MHz
  • Technology: LC
  • Height: 0.024 inches
  • Dimension: 0.079 x 0.049 inches
  • Market Popularity: Medium
  • Fake Product Risk: 88%
  • Supply and Demand: Balanced
