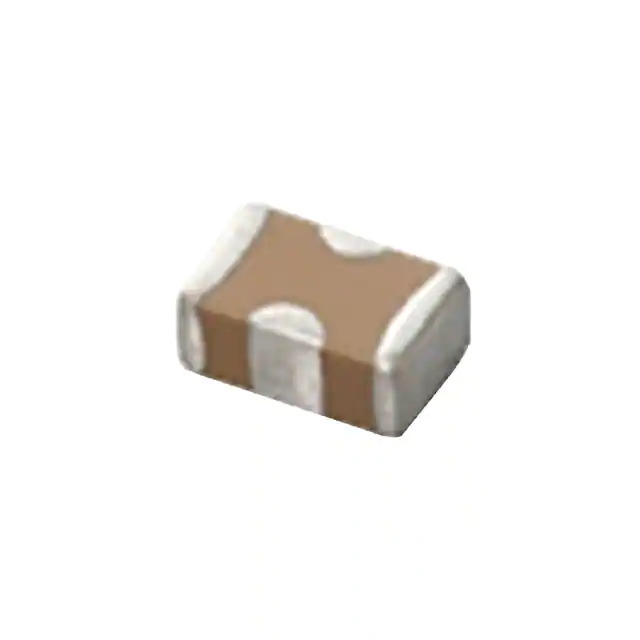

Same model may have multiple batches, images only for reference.
NFM15HC105D0G3D Murata Electronics North America
Same model may have multiple batches, images only for reference.

NFM15HC105D0G3D

Part No NFM15HC105D0G3D
Manufacturer Murata Electronics North America
Catalog Feed Through Capacitors
Description 0402(1005M) 4V 1.0UF +/- 20% 3 T
Datasheet
NFM15HC105D0G3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Feed Through Capacitors
Mfr Murata Electronics
Series EMIFIL®, NFM15
Package Tape & Reel
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 4V
Current 2 A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -55°C ~ 125°C
Insertion Loss -
Temperature Coefficient -
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.020" (0.50mm)
Thread Size -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1369334-NFM15HC105D0G3D
Ultra Librarian 3D Model Ultra Librarian NFM15HC105D0G3D CAD Model

Description

The NFM15HC105D0G3D is a feed through capacitor from Murata Electronics. It belongs to the EMIFIL® NFM15 series and is designed for filtering high-frequency noise in electronic circuits.

  • Series: EMIFIL® NFM15
  • Capacitance: 1µF
  • Tolerance: ±20%
  • Voltage Rating: 4V
  • Temperature Range: -55°C to 125°C
  • Package Size: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • DC Resistance: 30mOhm
  • Height: 0.020" (0.50mm)
  • AEC-Q200: Yes
  • REACH: Unaffected
