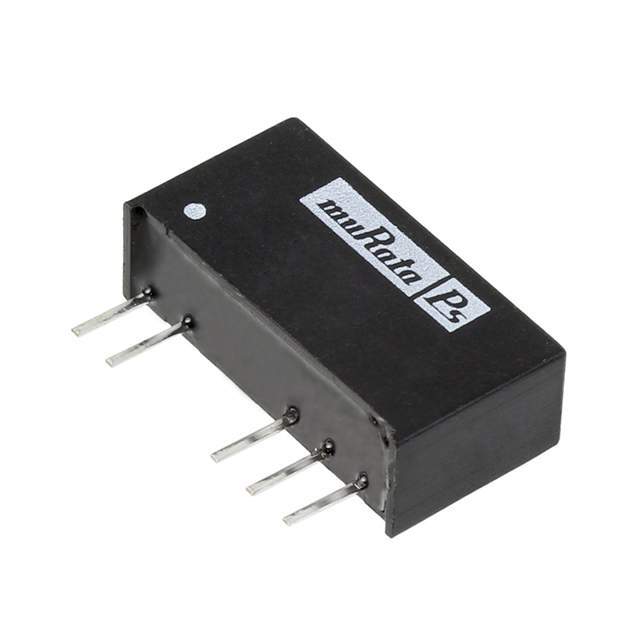

Same model may have multiple batches, images only for reference.
NMA0515SC Murata Electronics North America
Same model may have multiple batches, images only for reference.

NMA0515SC

Part No NMA0515SC
Manufacturer Murata Electronics North America
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 5VIN 2-OUT 15V/-15V 0.033A/-0.033A 1W 5-Pin SIP Tube / Isolated 1W Dual Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics North America
Pin Count 5
Operating Temperature (Max) 85C
Operating Temperature (Min) -40C
Screening Level Industrial
Rad Hardened No
Mounting Style Through Hole
Packaging Tube
Number of Outputs 2
Package SIP
Product Height (mm) 10(mm)
Output Power 1 W
Input Voltage 4.5 to 5.5(V)
Output Voltage 15/-15(V)
DELETED Compliant
Product Length (mm) 19.5(mm)
Product Depth (mm) 6(mm)
Output Current 0.033/-0.033(A)
Isolation Isolated
Win Source Part Number 045289-NMA0515SC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management
Family Name NMA0515
Introduction Date September 07, 2007
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMA0515SC CAD Model

Description

The NMA0515SC is a high-popularity electronic component suitable for power management applications from Murata Electronics North America.

  • Packaging: Tube
  • Mounting Style: Through-hole
  • Package: SIP
  • Dimensions: 19.5mm x 6mm x 10mm
  • Pins: 5
  • Isolation: Isolated
  • Operating Temperature Range: -40C to 85C
  • Outputs: 2
  • Output Power: 1W
  • Output Voltage: 15/-15V
  • Input Voltage Range: 4.5V to 5.5V

It is a common-used part with an estimated EOL date of 2027. Alternative parts are available, including DCH010515DN7, AM1D-0515D-RZ, AM1DS-0515DZ, and AM1DS-0515DH52Z. This component is available at Win Source with part number 045289-NMA0515SC.
