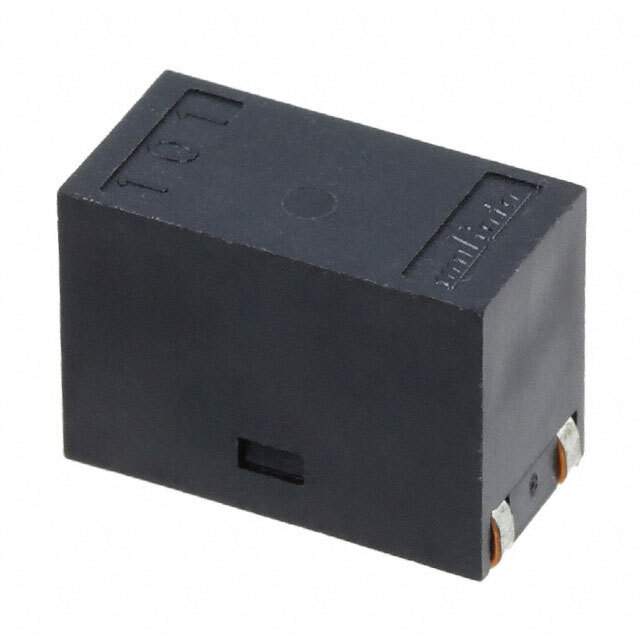

PLT10HH101150PNL Real Image
Same model may have multiple batches, images only for reference.

PLT10HH101150PNL

Part No PLT10HH101150PNL
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 15A 2LN 100 OHM SMD AEC-Q200 / 2 Line Common Mode Choke Surface Mount 100 Ohms @ 10 MHz 15A DCR 2.3mOhm
Datasheet
PLT10HH101150PNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Murata Electronics
Series PLT10H
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 100 Ohms @ 10 MHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 2.3mOhm
Voltage Rating - DC 300V
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.508" L x 0.358" W (12.90mm x 9.10mm)
Height (Max) 0.370" (9.40mm)
Package / Case Vertical, 4 PC Pad
Base Product Number PLT10HH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 490-12821-1,490-12821-2,490-12821-6,490-12821-ND,490-12821,PLT10HH101150PNL-ND
Standard Package 125
Win Source Part Number 1190135-PLT10HH101150PNL
Ultra Librarian 3D Model Ultra Librarian PLT10HH101150PNL CAD Model

Description

The Murata Electronics PLT10HH101150PNL is a common mode choke filter designed for power line applications.

  • Voltage Rating: 300V
  • Current Rating: 15A
  • Package: Vertical, 4 PC pad
  • Packaging: Tape and reel
  • Height: 0.370" (9.40mm)
  • Number of Lines: 2
  • Impedance @ Frequency: 100 Ohms @ 10 MHz
  • DC Resistance (DCR) (max): 2.3mOhm
  • Operating Temperature: -55°C to 125°C
  • AEC-Q200: Rated
  • Alternative Part Numbers: PLT10HH101150PNL
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8548.00.0000
  • Base Product Number: PLT10HH
  • Approval Agency: -
