Same model may have multiple batches, images only for reference.

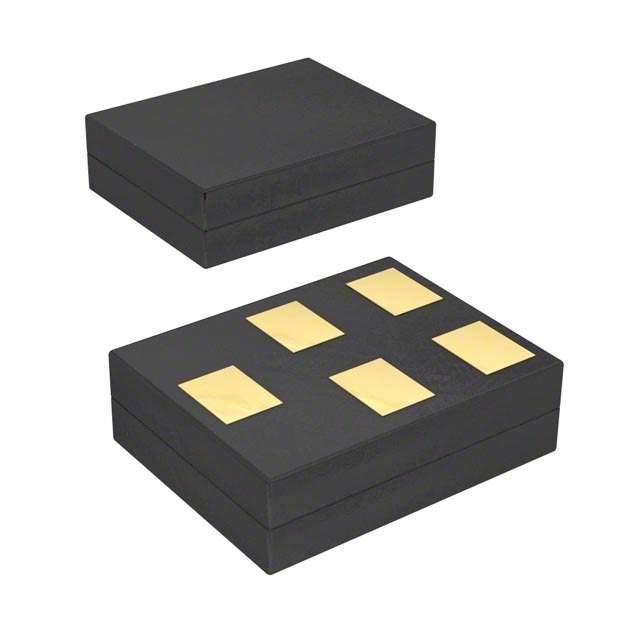

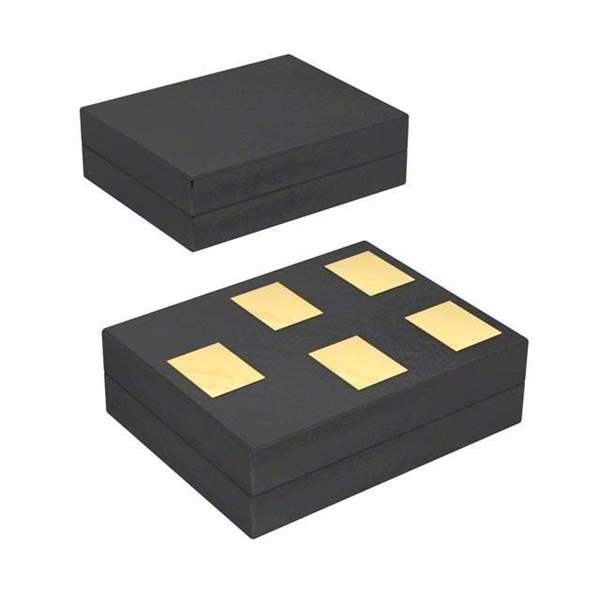

SF2217K Real Image
Same model may have multiple batches, images only for reference.

SF2217K

Part No SF2217K
Manufacturer Murata Electronics North America
Catalog SAW Filters
Datasheet
SF2217K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr Murata Electronics
Package Cut Tape (CT)
Product Status Obsolete
Frequency - Center 1591.5MHz
Bandwidth 35MHz
Insertion Loss 2.4dB
Applications Wireless
Mounting SMD (SMT)
Package / Case 5-SMD, No Lead
Height (Max) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Base Product Number SF22
Other Names Q10092403,583-1183-2,583-1183-1,583-1183-6
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1275905-SF2217K
Ultra Librarian 3D Model Ultra Librarian SF2217K CAD Model

Description

The Murata Electronics SF2217K is a SAW filter used in wireless applications.

  • Bandwidth: 35MHz
  • Frequency Center: 1591.5MHz
  • Packaging: Cut tape (CT)
  • Mounting: SMD (SMT) technology
  • Insertion Loss: 2.4dB
  • Maximum Height: 0.028" (0.70mm)
  • Package/Case: 5-SMD, No Lead
  • Dimension: 0.055" L x 0.043" W (1.40mm x 1.10mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0080
  • Also known as: Q10092403, 583-1183-2, 583-1183-1, and 583-1183-6
  • Status: Obsolete
  • Category: Filters>SAW Filters
