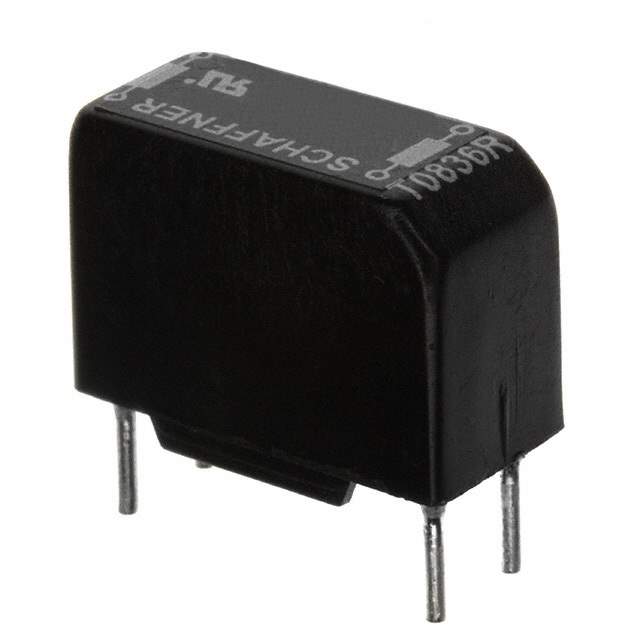

RN202-1-02-3M0 Real Image
Same model may have multiple batches, images only for reference.

RN202-1-02-3M0

Part No RN202-1-02-3M0
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 3MH 1A 2LN TH
Datasheet
RN202-1-02-3M0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Series RN
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3mH @ 10kHz
Current Rating (Maximum) 1A
DC Resistance (DCR) (Maximum) 210 mOhm (Typ)
Voltage Rating - AC 300V
Operating Temperature Range -40°C ~ 100°C
Approvals ENEC, UR, VDE
Mounting Style Through Hole
Dimension 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Maximum) 0.543" (13.80mm)
Package Vertical, 4 PC Pin
Win Source Part Number 793304-RN202-1-02-3M0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RN202-1-02-3M0 CAD Model

Description

The Schaffner EMC Inc. RN series part 793304-RN202-1-02-3M0 is a power line filter that comes in a tray packaging.

  • Mounting Style: Through Hole
  • Package Size: 0.717" L x 0.346" W (18.20mm x 8.80mm)
  • Height: 0.543" (13.80mm)
  • Voltage Rating: 300V (AC)
  • Approvals: ENEC, UR, VDE
  • Popularity: Medium
  • Supply and Demand Status: Balanced
