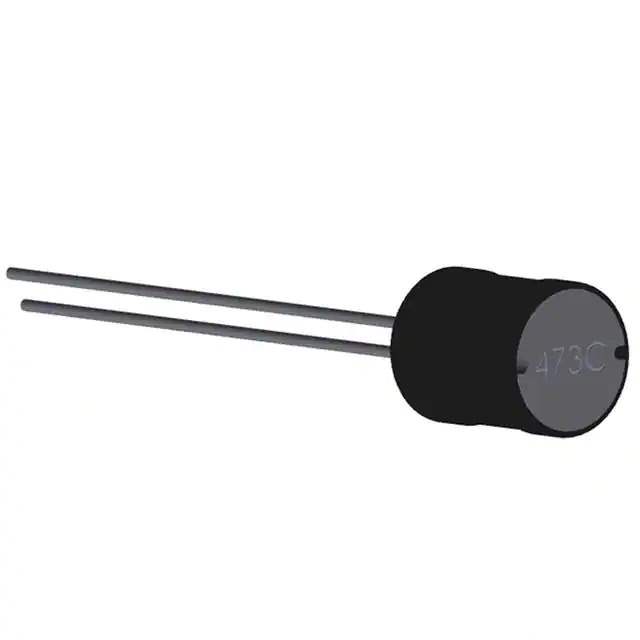

Same model may have multiple batches, images only for reference.

13R225C

Name: 13R225C
Brand: Murata Power Solutions Inc.
SKU: 853965
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	13R225C
Manufacturer	Murata Power Solutions Inc.
Catalog	Fixed Inductors
Description	FIXED IND 2.2MH 240MA 4.5 OHM TH
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Power Solutions Inc.
Series	1300R
Package	Bulk
Product Status	Active
Type	Wirewound
Inductance	2.2 mH
Tolerance	±10%
Current Rating (Amps)	240 mA
Shielding	Unshielded
DC Resistance (DCR)	4.5Ohm Max
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	1 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Base Product Number	13R
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	853965-13R225C
Ultra Librarian 3D Model	Ultra Librarian 13R225C CAD Model

Alternative Products

Description

The 853965-13R225C is a fixed inductor from Murata Power Solutions Inc.

Series: 1300R
Inductor Type: Wirewound
Package: Bulk
Size: 0.374" Dia (9.50mm)
Seated Height: 0.531" (13.50mm)
Inductance: 2.2 mH
DC Resistance (DCR): 4.5Ohm max
Mounting Type: Through-Hole
Package Style: Radial, Vertical Cylinder
Operating Temperature: -40°C to 85°C
REACH: Unaffected
ECCN: EAR99
Current Rating: 240 mA
Inductance Frequency Test: 1 kHz
