Same model may have multiple batches, images only for reference.

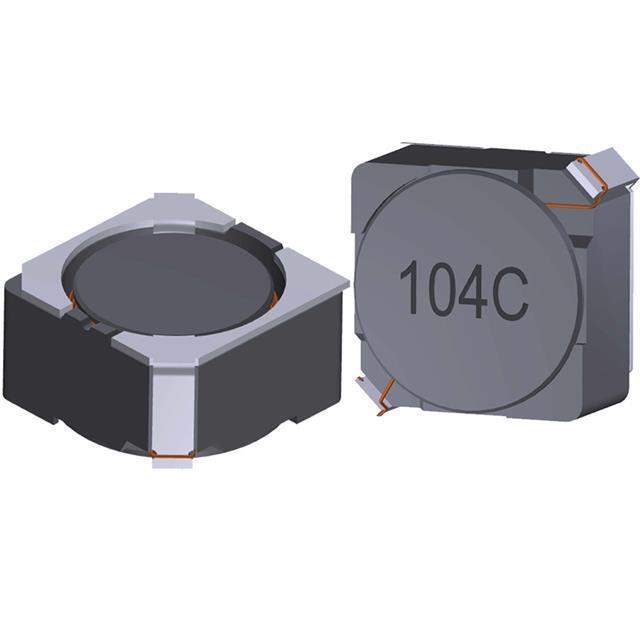

29472C Real Image
Same model may have multiple batches, images only for reference.

29472C

Part No 29472C
Manufacturer Murata Power Solutions Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.3A 30 MOHM SMD / 4.7 µH Shielded Wirewound Inductor 2.3 A 30mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Power Solutions Inc.
Series 2900
Package Tape & Reel (TR)
Type Wirewound
Inductance 4.7 µH
Current Rating (Amps) 2.3 A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number 29
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 811-1140-1,811-1140-2,TUC29472C,811-1140-6
Standard Package 1,000
Win Source Part Number 1036300-29472C
Ultra Librarian 3D Model Ultra Librarian 29472C CAD Model

Description

This is a wirewound fixed inductor from the 2900 series, with a shielding feature.

  • Series: 2900
  • Type: Wirewound Fixed Inductor
  • Shielding: Shielded
  • Package: Tape & Reel (TR)
  • Inductance: 4.7 µH
  • Maximum Seated Height: 0.157" (4.00mm)
  • Standard Package: 1,000 units
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 30mOhm Max
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.283" L x 0.283" W (7.20mm x 7.20mm)
  • Current Rating: 2.3 A
  • Inductance Frequency-Test: 10 kHz
  • Manufacturer: Murata Power Solutions Inc.
  • Alternative Parts: SRR6040A-5R0Y, ASPI-0602S-5R0M-T, NRS5030T4R7MMGJ, SLF6028T-4R7M1R6-PF, SRU6025-4R7Y, and MBH6045C-4R7NA=P3
