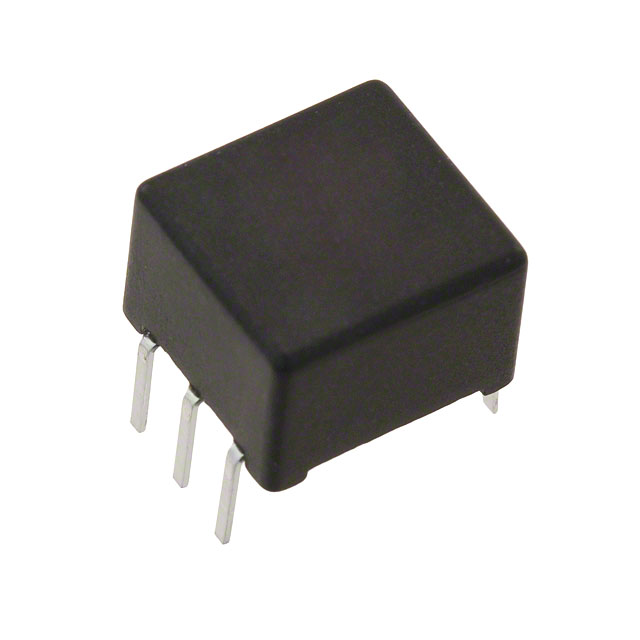

Same model may have multiple batches, images only for reference.
78253/55C Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

78253/55C

Part No 78253/55C
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description XFRMR 5V IN/OUT MAX 253 DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Murata Power Solutions Inc.
Series 78253
Package Tube
Product Status Active
Inductance 830 µH
For Use With/Related Products MAX253
Mounting Type Through Hole
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.260" (6.60mm)
Weight 0.04 oz (1.14 g)
Base Product Number 78253
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 29426-78253/55C
Ultra Librarian 3D Model Ultra Librarian 78253/55C CAD Model

Description

Product Description

The 78253/55C is engineered to meet the demands of modern electronic environments. Its advanced features make it suitable for an array of innovative applications, providing excellent performance and long-term reliability.

Features and Benefits

  • Advanced thermal management
  • Lower total harmonic distortion
  • Exceptionally lightweight design
  • Broad compatibility with various systems

Applications

  • Telecommunication systems
  • Smart home technologies
  • Green energy solutions
  • Automated testing equipment

The 78253/55C stands out as a versatile component, suitable for various cutting-edge technological solutions, providing both flexibility and reliability to developers.
