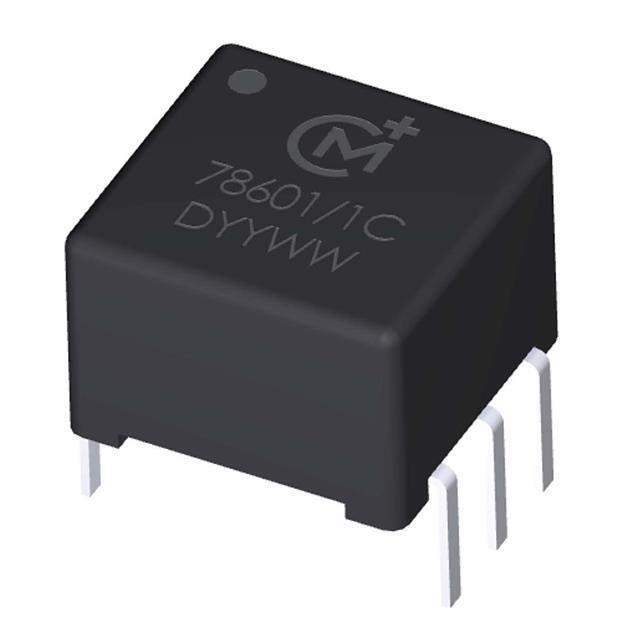

78615/1C Real Image
Same model may have multiple batches, images only for reference.

78615/1C

Part No 78615/1C
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description General Purpose Pulse Transformers | PULSE XFMR 1CT:1CT 2MH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Transformer Type General Purpose
Inductance 2mH
ET (Volt-Time) 20VμS
Mounting Style Through Hole
Parts Dimension 0.375" L x 0.354" W (9.52mm x 9.00mm)
Height - Seated (Maximum) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1133704-78615/1C
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 78615/1C CAD Model

Description

The Murata Power Solutions Inc. 78615/1C is a general-purpose transformer that has an inductance of 2mH.

  • Inductance: 2mH
  • Packaging: Tube
  • Mounting Style: Through Hole
  • Operating Temperature Range: 0°C ~ 70°C
  • Height: 0.250" (6.35mm)
  • Parts Dimension: 0.375" L x 0.354" W (9.52mm x 9.00mm)
