Same model may have multiple batches, images only for reference.

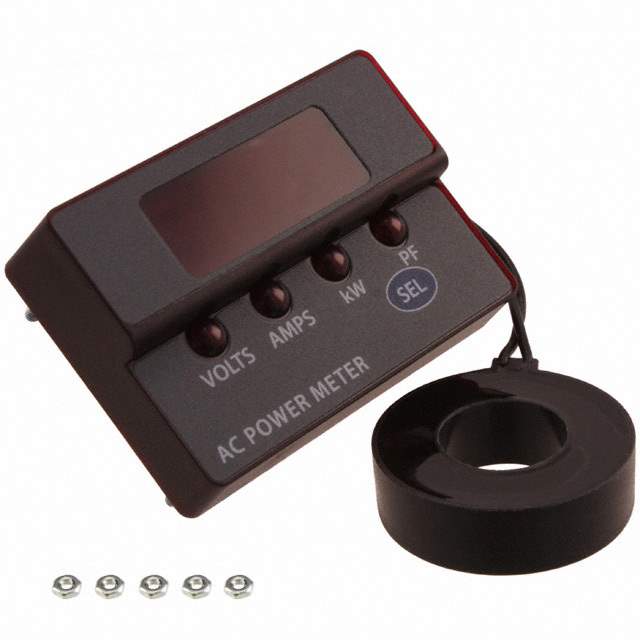

ACM20-4-AC1-R-F-C Real Image
Same model may have multiple batches, images only for reference.

ACM20-4-AC1-R-F-C

Part No ACM20-4-AC1-R-F-C
Manufacturer Murata Power Solutions Inc.
Catalog Panel Meters
Description MULTI METER 0-100A LED PNL MOUNT / Multifunction Meter (Current, Voltage, Wattage, Frequency) LED - Red Characters Display Panel Mount - Surface
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Murata Power Solutions Inc.
Series ACM20
Package Bulk
Type Multifunction Meter (Current, Voltage, Wattage, Frequency)
Measuring Range 0 ~ 100A
Display Type LED - Red Characters
Number Of Characters Per Row 4
Display Characters - Height 0.360" (9.14mm)
Voltage - Supply 85 ~ 264VAC
Panel Cutout Dimensions Rectangular - 36.22mm x 22.10mm
Mounting Type Panel Mount - Surface
Termination Style Screw Terminal
Features Built In Current Transformer (Primary)
Temperature Range - Operating 0°C ~ 60°C
Weight 0.096 lb (43.54 g)
Base Product Number ACM20-4-AC1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names ACM20-4-AC1-R-F-C-ND,ACM204AC1RFC,Q5299772,811-2703
Standard Package 12
Win Source Part Number 1020243-ACM20-4-AC1-R-F-C
Ultra Librarian 3D Model Ultra Librarian ACM20-4-AC1-R-F-C CAD Model

Description

The Murata Power Solutions Inc. ACM20-4-AC1-R-F-C is a popular choice in the category of Industrial Automation and Controls Panel Meters.

  • Type: Multifunction meter (measures current, voltage, wattage, and frequency)
  • Built-in: Current Transformer (primary)
  • Termination Style: Screw Terminal
  • Voltage Supply Range: 85 ~ 264VAC
  • Measurement Range: 0 ~ 100A
  • ECCN: EAR99
  • Alternative Names: ACM20-4-AC1-R-F-C-ND, ACM204AC1RFC, Q5299772, and 811-2703
