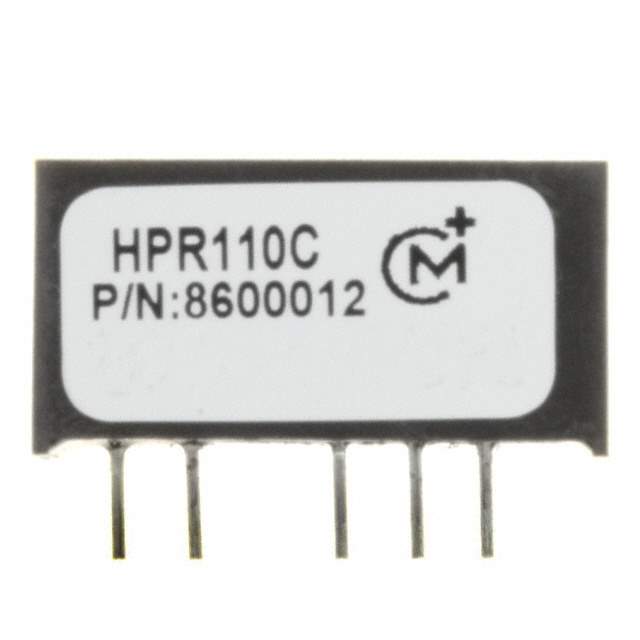

Same model may have multiple batches, images only for reference.

HPR110C

Name: HPR110C
Brand: Murata Power Solutions Inc.
SKU: 1028097
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	HPR110C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 30mA, 30mA 10.8V - 13.2V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	HPR1xxC (0.75W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	30mA, 30mA
Power (Watts)	1 W
Voltage - Isolation	750 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	74%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Base Product Number	HPR1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1767-5
Standard Package	48
Win Source Part Number	1028097-HPR110C
Ultra Librarian 3D Model	Ultra Librarian HPR110C CAD Model

Alternative Products

Description

The HPR110C series isolated module DC DC converter is designed by Murata Power Solutions Inc.

Module: 7-SIP
Leads: 5
Mounting: Through-Hole
Package: Tube
Operating Temperature: -40°C to 100°C
Outputs: 2
Output Voltage: 12V and -12V
Current Output: 30mA each
Input Range: 10.8V to 13.2V
ECCN: EAR99
Popularity: High
MSL Level: 1 (Unlimited)
HTSUS Code: 8504.40.9580
Standard Package: 48
Power: 1W
