TME 1212S

Name: TME 1212S
Brand: Traco Power
SKU: 848320
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TME 1212S
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W
Datasheet	TME 1212S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Traco Power
Series	TME (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	84mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	79%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm)
Base Product Number	TME 1212
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	848320-TME 1212S
Ultra Librarian 3D Model	Ultra Librarian TME 1212S CAD Model

Alternative Products

Description

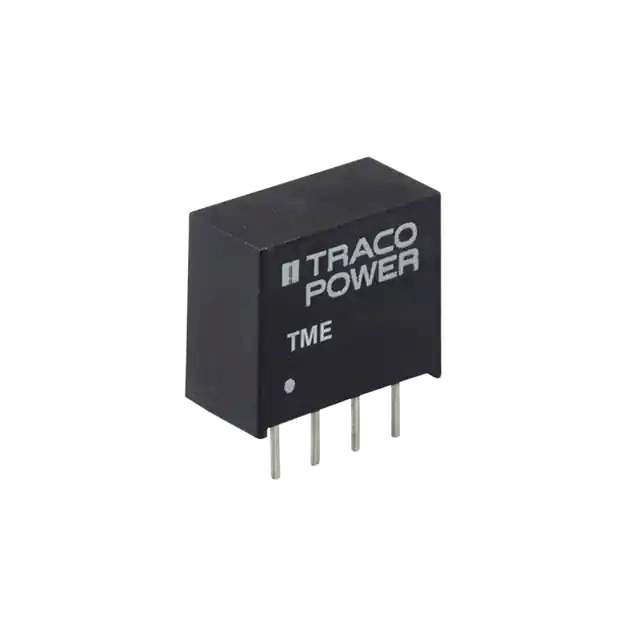

The TME 1212S is a 1W isolated module DC-DC converter from Traco Power.

Power Supplies: Board Mount
Application: ITE (Commercial)
Isolation: 1 kV
Maximum Output Current: 84mA
Input Voltage: 10.8V to 13.2V
Output Voltage: 12V
Protection: SCP (Short Circuit Protection)
Size: 0.45" L x 0.28" W x 0.40" H
Mounting: Through Hole
Package: 4-SIP Module
Operating Temperature: -40°C to 85°C, with Derating
Series: TME
Product Status: Active
