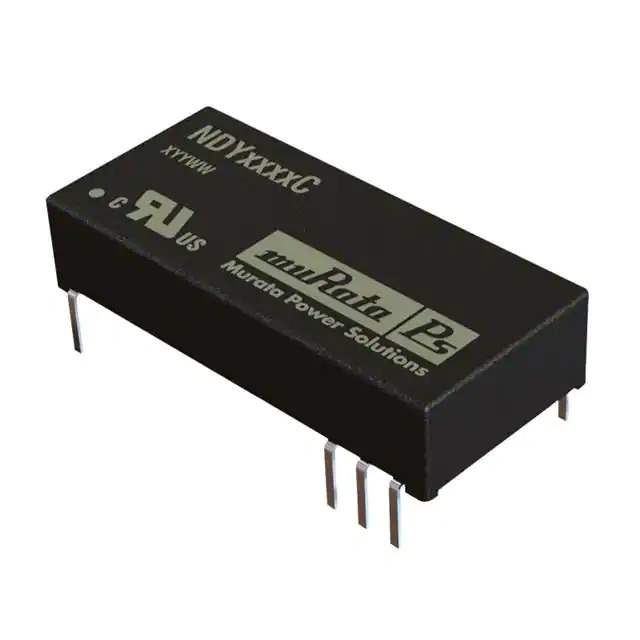

Same model may have multiple batches, images only for reference.

NDY1209C

Name: NDY1209C
Brand: Murata Power Solutions Inc.
SKU: 648225
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NDY1209C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 3W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NDY (3W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	9V
Current - Output (Max)	333mA
Power (Watts)	3 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number	NDY12
Standard Package	15 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	648225-NDY1209C
Ultra Librarian 3D Model	Ultra Librarian NDY1209C CAD Model

Alternative Products

Description

The NDY1209C is a 3W isolated module DC-DC converter from the NDY series by Murata Power Solutions Inc.

Application: Power supplies in board mount applications, ITE (Commercial)
Package: Tube
Dimensions: 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Output: Single output
Maximum Output Current: 333mA
Input Voltage Range: 9V to 18V
Output Voltage: 9V
Voltage Isolation: 1 kV
Efficiency: 78%
Mounting: Through-hole
Operating Temperature: -40°C to 85°C
Status: Active
