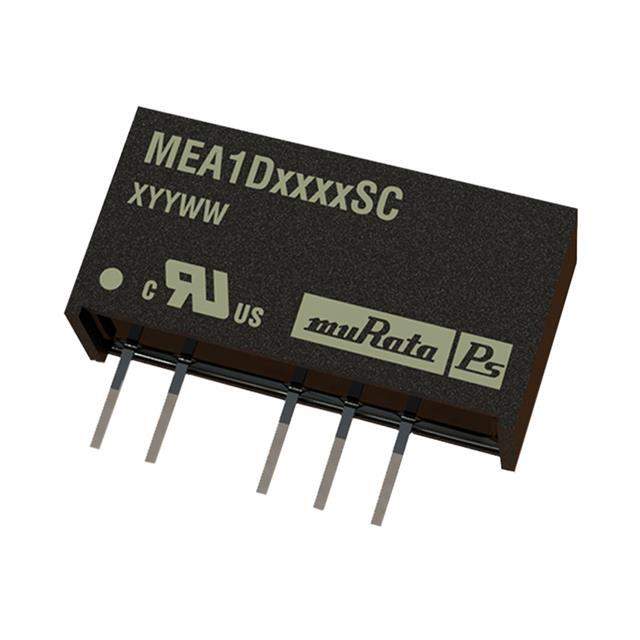

MEA1D2409SC Real Image
Same model may have multiple batches, images only for reference.

MEA1D2409SC

Part No MEA1D2409SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W / Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEA1 (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 56mA, 56mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87.5%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MEA1D24
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-2172-5
Standard Package 25
Win Source Part Number 1078511-MEA1D2409SC
Ultra Librarian 3D Model Ultra Librarian MEA1D2409SC CAD Model

Description

The Murata Power Solutions Inc. MEA1D2409SC is an isolated module type electronic component that is designed for use in ITE (Commercial) applications.

  • Series: MEA1 (1W)
  • Power Rating: 1W
  • Voltage Isolation: 1kV
  • Efficiency: 87.5%
  • Voltage Input Range: 21.6V to 26.4V
  • Input Current: 56mA, 56mA
  • Voltage Output 1: 9V
  • Voltage Output 2: -9V
  • Mounting Type: Through-Hole
  • Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Package: Tube
  • Package Type: 7-SIP Module, 5 Leads
  • Alternative Parts: MEV1D2409SC, MEA1D2412SC, and MEJ1D2409SC
  • REACH Status: REACH unaffected
  • HTSUS: 8504.40.9580
