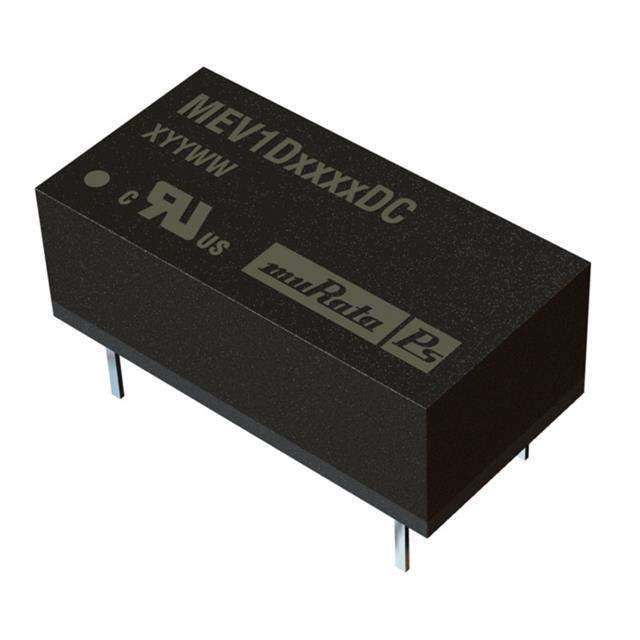

Same model may have multiple batches, images only for reference.

MEV1D2412DC

Name: MEV1D2412DC
Brand: Murata Power Solutions Inc.
SKU: 639044
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MEV1D2412DC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	3kVDC Isolated 1W Single & Dual Output DC/DC Converters \| DC DC CONVERTER +/-12V 1W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Murata Power Solutions Inc.
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Minimum)	21.6V
Voltage - Input (Maximum)	26.4V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Maximum)	42mA, 42mA
Power (W)	1W
Voltage - Isolation	3kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Style	Through Hole
Manufacturer Package	14-DIP Module, 6 Leads
Parts Dimension	0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm)
Manufacturer Pack Quantity	25
MSL Level	1 (Unlimited)
Win Source Part Number	1221732-MEV1D2412DC
Manufacturer Homepage	www.murata.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian MEV1D2412DC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. MEV1D2412DC is an isolated module that is ideal for use in ITE (Commercial) applications and manufactured by Murata Power Solutions Inc.

Output Voltage: 12V and -12V
Maximum Output Current: 42mA for both outputs
Input Voltage Range: 21.6V to 26.4V
Voltage Isolation: 3kV
Power Rating: 1W
Efficiency: 88%
Operating Temperature Range: -40°C to 85°C
Package Size: 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.0mm)
