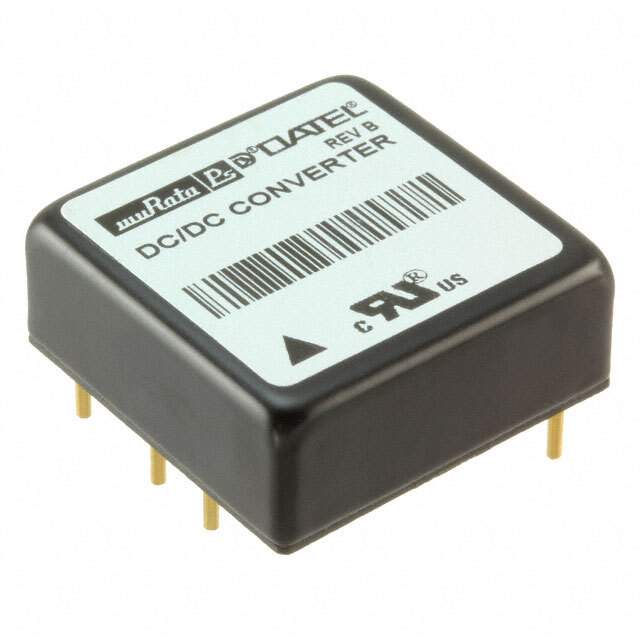

Same model may have multiple batches, images only for reference.

BPM15-150-Q12-C

Name: BPM15-150-Q12-C
Brand: Murata Power Solutions Inc.
SKU: 1340731
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	BPM15-150-Q12-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	BPM15 (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	500mA, 500mA
Power (Watts)	15 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	OTP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	84.5%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	BPM15
Standard Package	96
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340731-BPM15-150-Q12-C
Ultra Librarian 3D Model	Ultra Librarian BPM15-150-Q12-C CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. BPM15-150-Q12-C is an isolated module DC-DC converter that comes in a 6-DIP module.

Application: ITE (Commercial)
Power Output: 15 W
Voltage Isolation: 1.6 kV
Number of Outputs: 2
Maximum Output Current: 500mA (per output)
Input Voltage Range: 9V to 36V
Output Voltages: 15V, -15V
Efficiency: 84.5%
Operating Temperature: -40°C to 85°C
RoHS3 Compliant: Yes
Mounting Type: Through Hole
