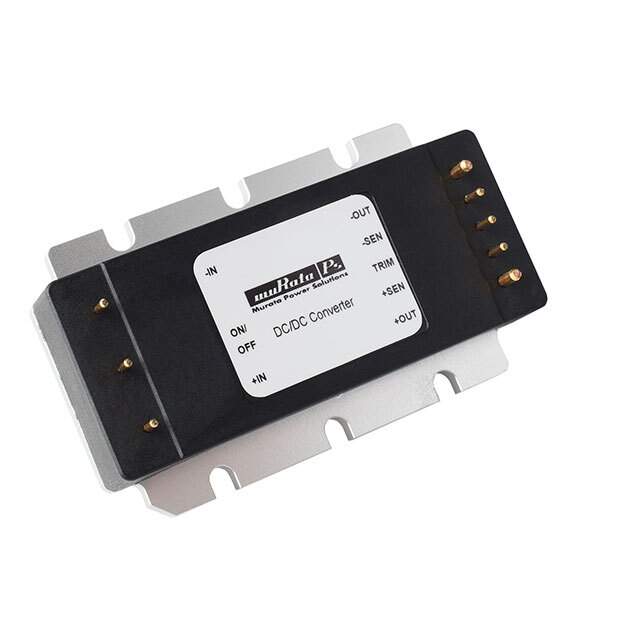

Same model may have multiple batches, images only for reference.

IRE-12/10-Q12PF-C

Get a Quote

Part No	IRE-12/10-Q12PF-C
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	IRE-Q12 (120W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	10A
Power (Watts)	120 W
Voltage - Isolation	2.828 kV
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating	-40°C ~ 115°C (With Derating)
Efficiency	92%
Mounting Type	Through Hole
Package / Case	Eighth Brick
Size / Dimension	2.41" L x 1.45" W x 0.50" H (61.2mm x 36.8mm x 12.7mm)
Supplier Device Package	Eighth Brick
Control Features	Enable, Active High
Approval Agency	cURus
Base Product Number	IRE-12
Standard Package	36
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1339646-IRE-12/10-Q12PF-C
Ultra Librarian 3D Model	Ultra Librarian IRE-12/10-Q12PF-C CAD Model

Alternative Products

Description

The IRE-Q12 (120W) is an isolated module power supply designed for ITE (Commercial) applications.

Application: ITE (Commercial)
Features: Adjustable Output, Remote On/Off, Remote Sense
Package: Tray
Size/Dimension: 2.41" L x 1.45" W x 0.50" H (61.2mm x 36.8mm x 12.7mm)
Power: 120W
Efficiency: 92%
Voltage Isolation: 2.828 kV
Output: One
Current Output: 10A
Voltage Input: 9V to 36V
Voltage Output: 12V
Enable Control: Active High
Mounting Type: Through-Hole
Package/Case: Eighth Brick
Supplier Device Package: Eighth Brick
Temperature Range: -40°C ~ 115°C (With Derating)
Approvals: cURus
