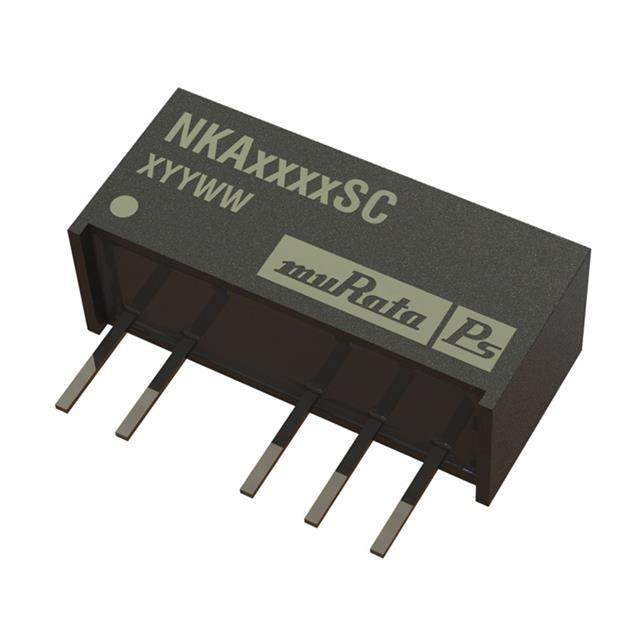

NKA1209SC Real Image
Same model may have multiple batches, images only for reference.

NKA1209SC

Part No NKA1209SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W / Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 56mA, 56mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1424-5
Standard Package 30
Win Source Part Number 1335274-NKA1209SC
Ultra Librarian 3D Model Ultra Librarian NKA1209SC CAD Model

Description

The Murata Power Solutions Inc. NKA1209SC is an isolated module DC DC converter that is designed for ITE (Commercial) applications.

  • Power (watts): 1 W
  • Voltage-isolation: 3 kV
  • Outputs: Two
  • Maximum Current Output: 56mA, 56mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage 1: 9V
  • Output Voltage 2: -9V
  • Mounting Type: Through hole
  • Package: 6-SIP module, 5 leads
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
