Same model may have multiple batches, images only for reference.

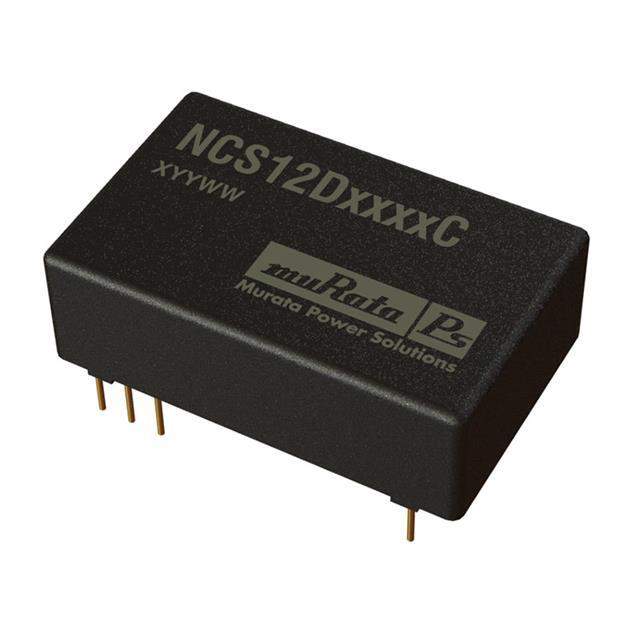

NCS12D1215C Real Image
Same model may have multiple batches, images only for reference.

NCS12D1215C

Part No NCS12D1215C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description UL 60950 recognition pending 4:1 Wide range voltage input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NCS12
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 9V
Voltage Input MAX 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 400mA, 400mA
Power (Watts) 12W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features OTP, SCP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 86%
Mounting Style Through Hole
Package 24-DIP Module, 9 Leads
Size 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm)
Win Source Part Number 1230500-NCS12D1215C
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name NCS12
Introduction Date July 16, 2013
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian NCS12D1215C CAD Model

Description

The Murata Power Solutions Inc. NCS12 isolated module is a high-performance component that is designed for use in a range of different electronic applications.

  • Power Rating: 12W
  • Voltage Isolation: 1.5kV (1500V)
  • Outputs: Two
  • Voltage Outputs: 15V and -15V respectively
  • Efficiency: 86%
  • Temperature Range: -40°C to 85°C
  • Mounting: Through-hole
  • Package Size: 1.26" L x 0.79" W x 0.41" H (32.0mm x 20.0mm x 10.5mm)
