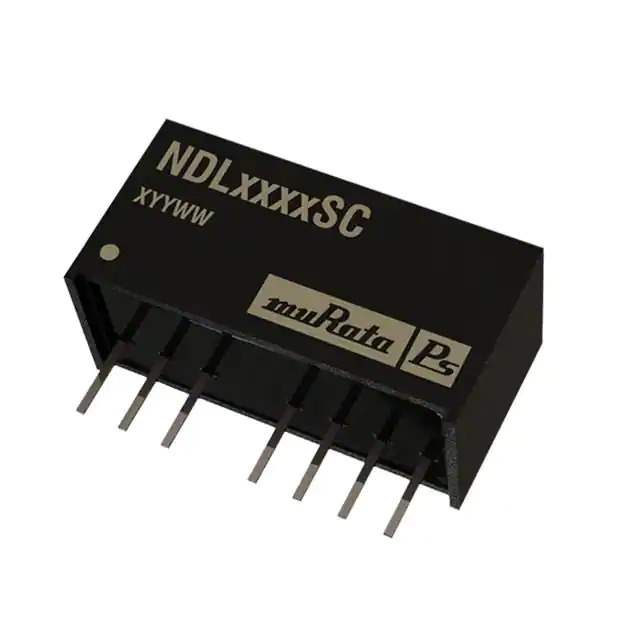

Same model may have multiple batches, images only for reference.

NDL0505SC

Name: NDL0505SC
Brand: Murata Power Solutions Inc.
SKU: 648175
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NDL0505SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NDL (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	66%
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number	NDL05
Standard Package	23 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	648175-NDL0505SC
Ultra Librarian 3D Model	Ultra Librarian NDL0505SC CAD Model

Alternative Products

Description

The NDL0505SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NDL series.
Designed For: power supplies in board mount applications.
Size: 0.86" L x 0.36" W x 0.44" H.
Package: tube.
Output Voltage: 5V.
Maximum Output Current: 400mA.
Input Voltage Range: 4.5V to 9V.
Efficiency: 66%.
Suitable For: commercial applications.
Standard Package: 23 pcs.
Product Status: active product.
