Same model may have multiple batches, images only for reference.

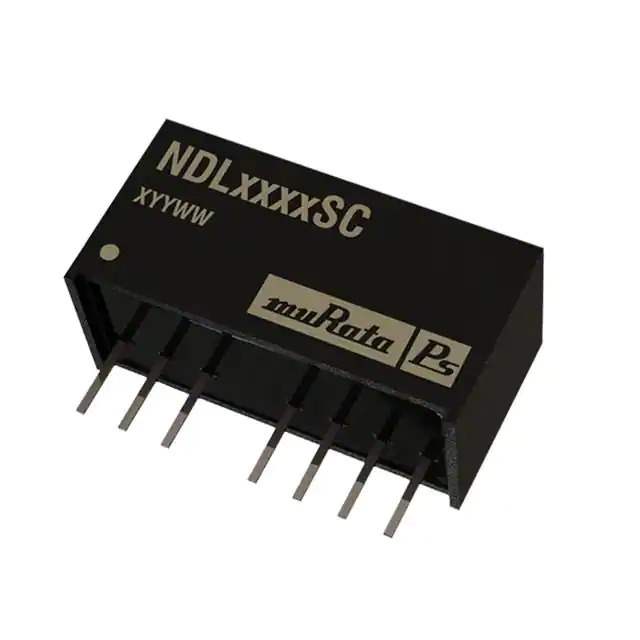

NDL2405SC Real Image
Same model may have multiple batches, images only for reference.

NDL2405SC

Part No NDL2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDL (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number NDL24
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648179-NDL2405SC
Ultra Librarian 3D Model Ultra Librarian NDL2405SC CAD Model

Description

The NDL2405SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NDL
  • Application: Board Mount Power Supplies
  • Size: 0.86" L x 0.36" W x 0.44" H
  • Voltage Isolation: 1 kV
  • Output: Single
  • Maximum Output Current: 400mA
  • Output Voltage: 5V
  • Input Voltage Range: 18V to 36V
  • Efficiency: 74%
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Through Hole
  • Package: 8-SIP Module (7 Leads)
  • Application: ITE (Commercial)
  • Standard Package: 23 pcs
