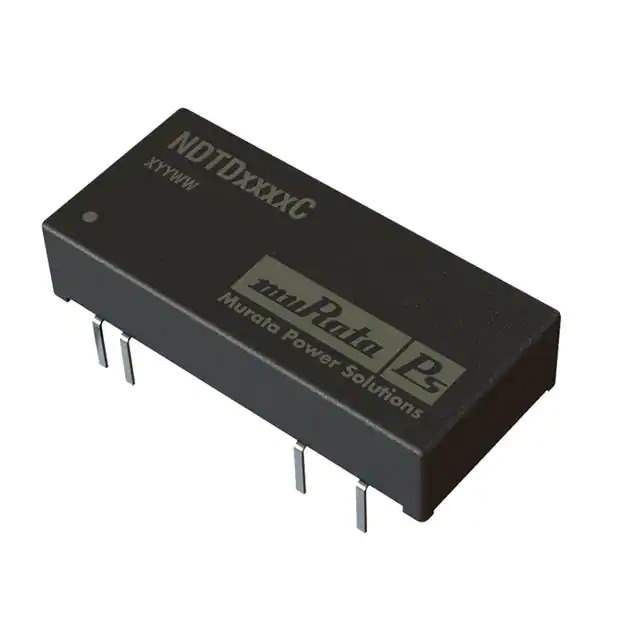

NDTD2405C Real Image
Same model may have multiple batches, images only for reference.

NDTD2405C

Part No NDTD2405C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDTD (3W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 24-DIP Module (600 mil, 8 Leads)
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDTD24
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648216-NDTD2405C
Ultra Librarian 3D Model Ultra Librarian NDTD2405C CAD Model

Description

The NTDTD2405C is a 3W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NDTD
  • Application: Power Supplies, Board Mount
  • Packaging: Tube
  • Size: 1.27" L x 0.58" W x 0.27" H
  • Outputs: Two
  • Output Voltages: 5V and -5V
  • Maximum Output Current: 300mA (per output)
  • Input Voltage Range: 18V to 36V
  • Efficiency: 78%
  • Application: Commercial
  • Standard Package: 15 pcs
